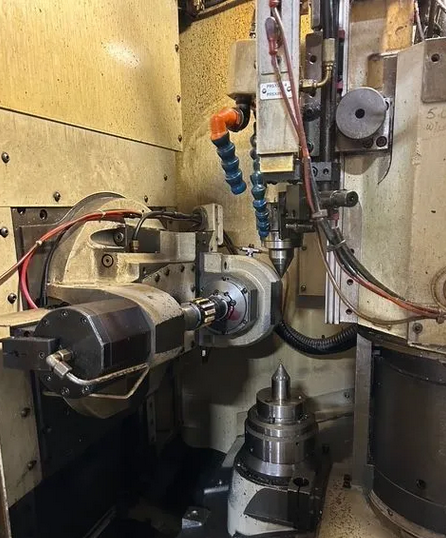

Gleason PHOENIX 125GH 1500 rpm GEAR HOBBERS, VERTICAL, NC & CNC

Ref : 2760668-3-MT

Condition : Used

Manufacturer : Gleason

Model : PHOENIX 125GH

Spindle Speed : 1500 rpm

Short Description : GEAR HOBBERS, VERTICAL, NC & CNC

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Fanuc 150MB control
1.25" hob arbor
Tailstock with center
180° loader
Coolant system
Chip conveyor
Hydraulic system
Mist collector
Work light
Light curtain
Manuals

Maximum workpiece diameter: 4.92"
Maximum diametral pitch: 3.2
Maximum hob diameter: 4.53"
Hob arbor size: 1.25"
Hob speed: 1500 rpm
Nominal workpiece diameter: 125 mm
Maximum hob setting angle: ±45°
Total swivel motion: 220°
Maximum hob diameter: 115 mm
Hob lengths up to: 215 mm
Optional hob arbor diameters: 22/27/32/40 mm
Tangential slide travel: 200 mm+
Hob speed range: 150–1500 rpm+
Workspindle speed: 5–250 rpm+
Floor space: 2578 × 1650 × 3117 mm
Weight: 6820 kg
