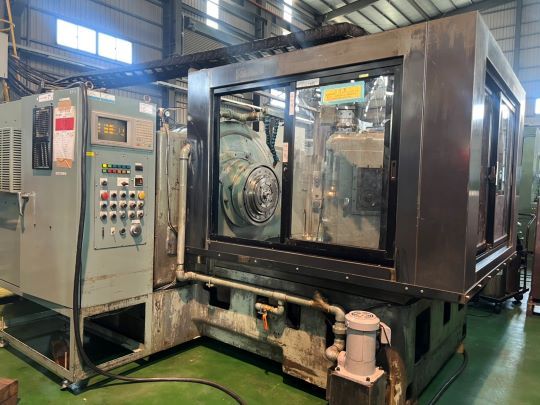

Gleason NO.116 (NC-TYPE) Variable Speed NC Hypoid Gear Generator
Ref :
2783696-3-MT
Condition :
Used
Manufacturer :
Gleason
Model :
NO.116 (NC-TYPE)
Spindle Speed :
Variable Speed
Short Description :
NC Hypoid Gear Generator
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
ASIA (China - Taiwan - HKG)
ASIA (China - Taiwan - HKG)
Mitsubishi 3 Axis
Diametral pitch: 12.7 MOD
Cone distance (30° spiral angle and 12" cutter): 230 mm
Work head angle: 12°–90°
Maximum gear pitch diameter 10:1: 460 mm
Maximum gear pitch diameter 2:1: 406 mm
Maximum gear pitch diameter 1:1: 324 mm
Face width (maximum): 70 mm
Number of teeth: 5–150 mm
Diameter of taper hole at large end: 100 mm
Taper per foot: 15 mm
Depth of taper: 150 mm
Diameter of hole through spindle: 78 mm
Cutter speeds: 17–115 rpm
Feed: 9–80 seconds
Net weight: 10,750 kg
