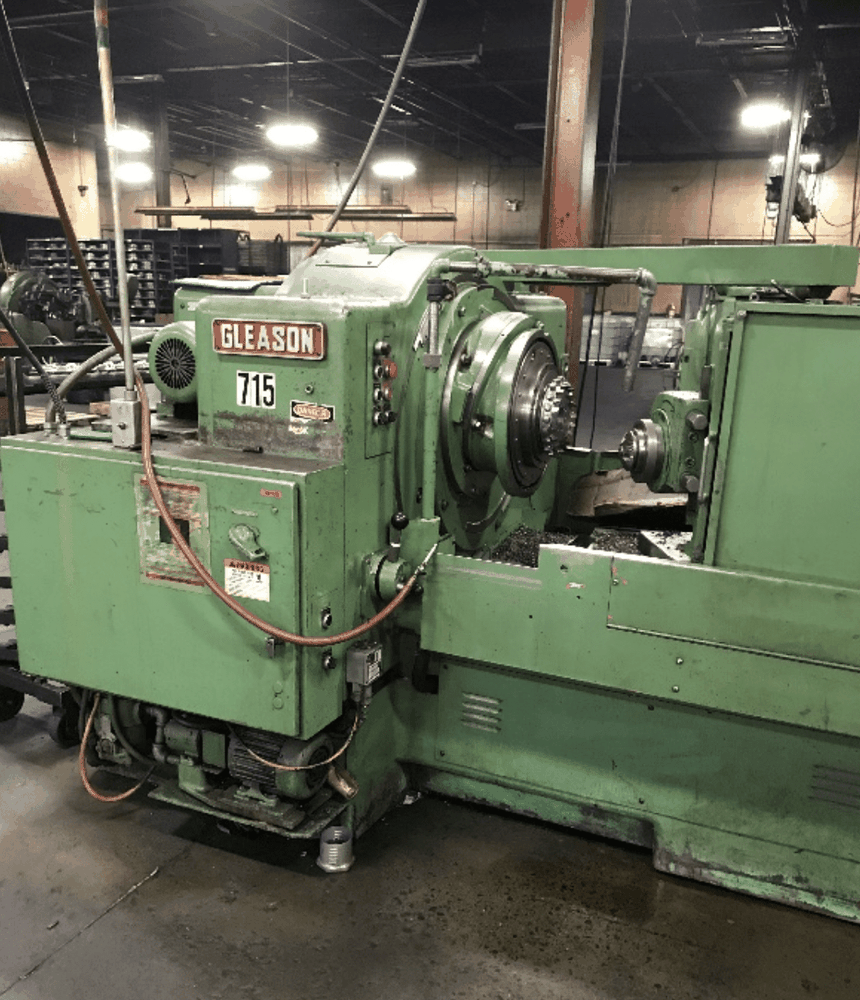

Gleason No.116 Variable Speed GEAR MACHINE

Cone Distance Max: 9 in
Pitch Angle Max: 84 degrees
Pitch Angle Min: 5 degrees
Diametral Pitch (Coarsest): 2
Max Cutting Depth: 1 in
Extreme Ratio: 10:1
Largest Pitch Diameter (10:1 Ratio Gear): 18 in
Largest Pitch Diameter (2:1 Ratio Gear): 16 in
Largest Pitch Diameter (1:1 Ratio Gear): 12.75 in
Number of Teeth Range: 5–175
Max Ratio for Pinions with Formate Gears: 2:1
Work Spindle Taper Hole Diameter (Large End): 3.906 in
Work Spindle Taper per Foot: 0.609 in
Work Spindle Taper Depth: 6 in
Spindle Through Hole Diameter: 3.062 in
Spindle Nose Diameter: 5.5 in
Cutter Diameter Capacity: 6 in
Cutter Diameter Capacity: 7.5 in
Cutter Diameter Capacity: 9 in
Cutter Diameter Capacity: 12 in
Max Offset Above Center: 4.5 in
Max Offset Below Center: 4.5 in
Max Distance from Center to Spindle Nose: 13.5 in
Cutter Speed Range: 20–115 RPM
Feed Rate Range: 9–80 seconds per tooth
Feed Motor Power: 5 HP
Feed Motor Speed: 1800 RPM
Hydraulic Motor Power: 0.75 HP
Hydraulic Motor Speed: 1800 RPM
Coolant Motor Power: 0.5 HP
Coolant Motor Speed: 3600 RPM
Overall Dimensions: 75 in x 114 in x 77 in
Machine Weight: 23,400 lbs

Features / Equipment
Hypoid gear production roughing capability
