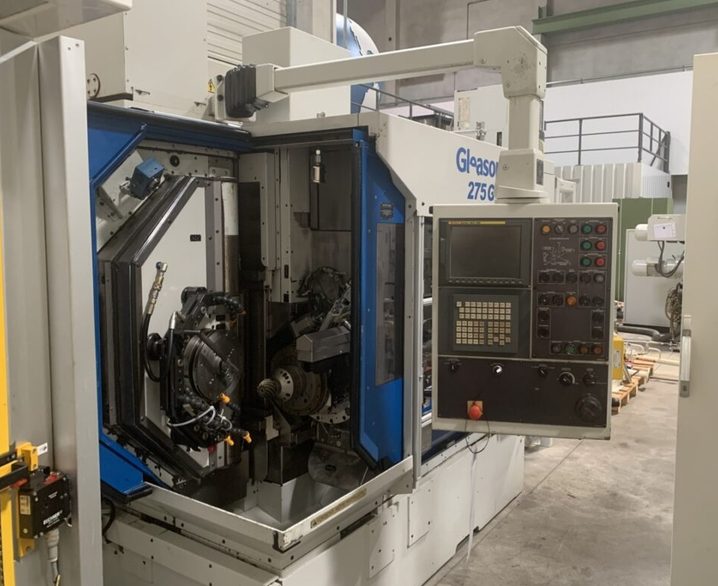

Gleason PHOENIX 275 G Variable Bevel Gear Grinding Machine

Transmission ratio: 10:1
Minimum number of teeth: 3
Maximum number of teeth: 200
Maximum tooth size: 20 mm
Maximum tooth width: 58 mm
Minimum tool diameter: 69.85 mm
Maximum tool diameter: 230 mm
X-axis travel: 325 mm
Y-axis travel: 350 mm
Z-axis travel: 470 mm
B-axis: +90.1° / -1°
Workpiece table diameter: 212.71 mm
Control: FANUC 160i-MB
Total power: 75 kW
Weight: 10,000 kg
Machine dimensions: 6.10 × 4.40 × 3.30 m
EWAB robot cell
KUKA robot
Fire extinguishing system
Cooling oil return system
Various pumps
Collecting basins
Threading device
A1/B2 axes with measuring probe
Clamping device for pinion shaft
External spindle oil cooler
Extraction system for pinion shaft
