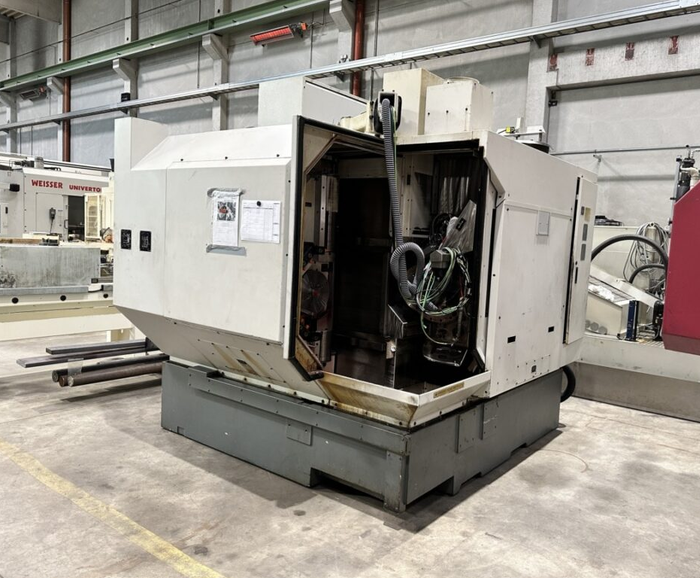

Gleason Phoenix 275 G 1200 rpm Bevel Gear Grinding Machine
Ref :
2803408-3-AW
Condition :
Used
Manufacturer :
Gleason
Model :
Phoenix 275 G
Spindle Speed :
1200 rpm
Short Description :
Bevel Gear Grinding Machine
Year(s) :
2008
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Control: Siemens 840D
X-Axis: 325 mm
Y-Axis: 350 mm
Z-Axis: 470 mm
B-Axis: +90.1° / -1°
Transmission Ratio: 10:1
Min Number of Teeth: 3
Max Number of Teeth: 200
Tooth Size Range: 20 mm
Max Tooth Width: 58 mm
Spindle Speed: 6000 rpm
Workpiece Spindle Speed: 1200 rpm
Max Tool Diameter: 230 mm
Min Tool Diameter: 69.85 mm
Workpiece Table Diameter: 212.71 mm
Total Power Requirement: 75 kW
Machine Weight: 10,000 kg
Machine Dimensions: 6.10 x 4.40 x 3.30 m
Equipped With:
Renishaw LP2 Internal Probe (X2/Y2 Axis)
Hoffmann Coolant Filter System HSF 100SE/K (2008)
Coolant Tank Capacity: 2500 L
VT Oil Mist Filter System
