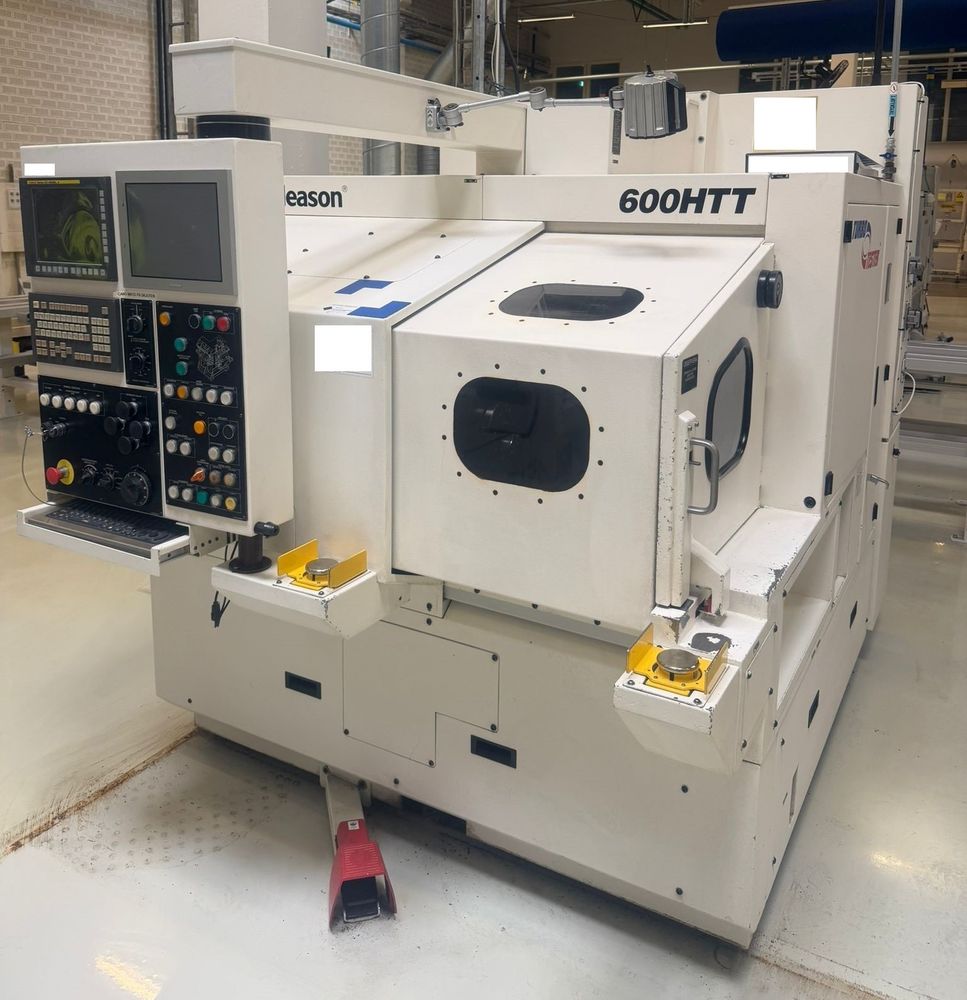

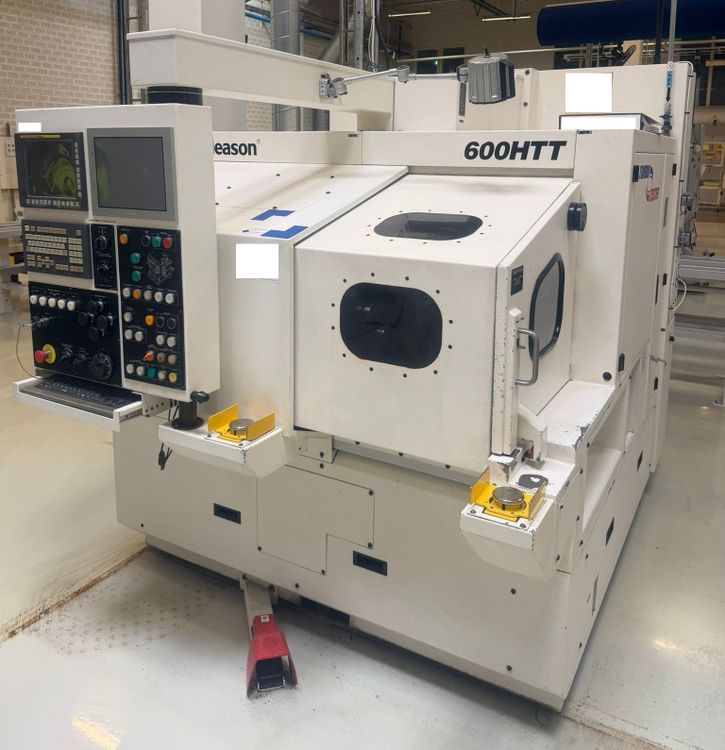

Gleason 600HTT 3000 rpm Maximum gear outside diameter: 600 mm
Ref :
2805992-3-AW
Condition :
Used
Manufacturer :
Gleason
Model :
600HTT
Spindle Speed :
3000 rpm
Short Description :
Maximum gear outside diameter: 600 mm
Year(s) :
2015
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
CNC Bevel Gear Testing Machine
Control: Fanuc 31i Model A
Single flank tester
Maximum pinion outside diameter: 254 mm
Maximum pinion drive speed: 3,000 rpm
Maximum gear drive speed: 3,000 rpm
Vertical offset range: ±76 mm
Pinion cone range (39T spindle): 165–343 mm
Pinion cone range (60T spindle): 215–393 mm
Gear cone range: 89–267 mm
Testing torque load: 2–90 Nm
Pinion spindle diameter (39T): 99.2 mm
Gear spindle diameter (39T): 99.2 mm
MTE option
