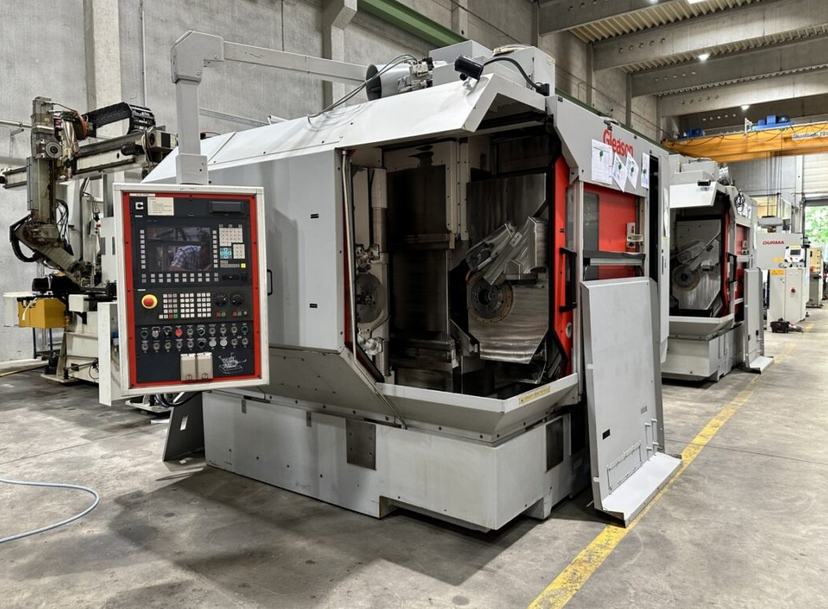

Gleason Phoenix 275 G 1200 rpm Bevel Gear Grinding Machine
Ref :
2797838-3-AW
Condition :
Used
Manufacturer :
Gleason
Model :
Phoenix 275 G
Spindle Speed :
1200 rpm
Short Description :
Bevel Gear Grinding Machine
Year(s) :
2006
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis: 325 mm
Y-axis: 350 mm
Z-axis: 470 mm
B-axis: +90.1° / −1°
Control: Siemens 840D
Workpiece table diameter: 212.71 mm
Transmission ratio: 10:1
Min number of teeth: 3
Max number of teeth: 200
Tooth size range: 20 mm
Tooth width max: 58 mm
Spindle speed (tool spindle): 6000 rpm
Workpiece spindle speed: 1200 rpm
Tool diameter max: 230 mm
Tool diameter min: 69.85 mm
Total power requirement: 75 kW
Machine weight: 10,000 kg
Machine dimensions: 6.10 × 4.40 × 3.30 m
Coolant filtering unit: Hoffmann HSF 100 V
