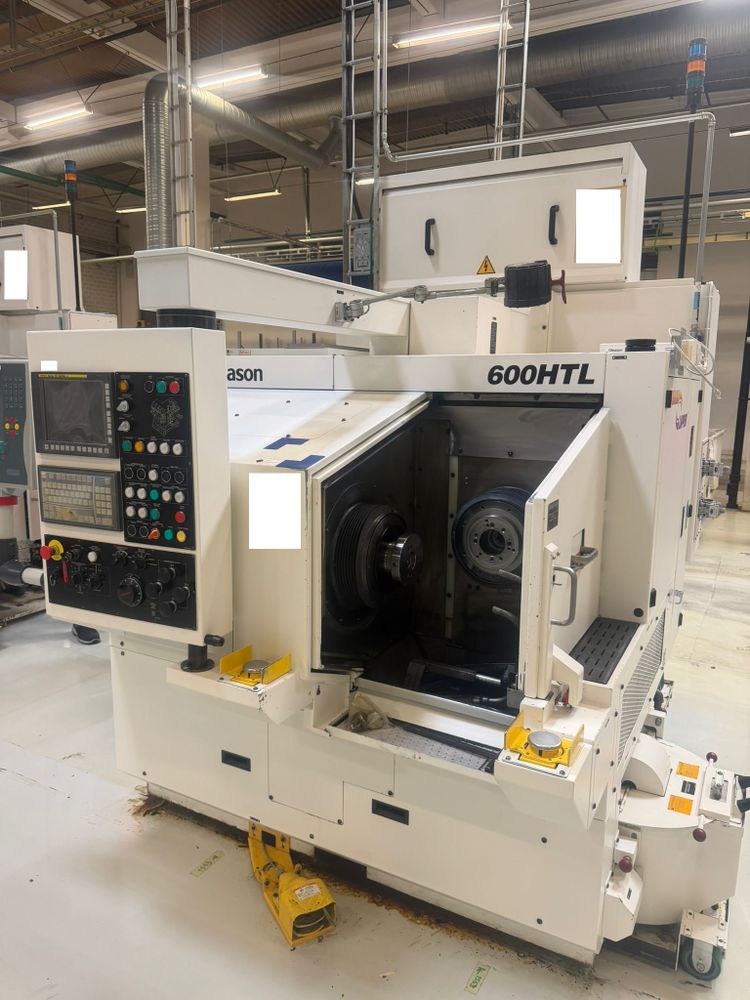

Gleason 600HTL 3100 rpm CNC Bevel Gear Lapping

Maximum gear outside diameter: 600 mm
Maximum pinion outside diameter: 254 mm
CNC: FANUC
Maximum pinion drive speed: 3100 rpm
Maximum gear drive speed: 3100 rpm
Offset range: 76 mm
Pinion cone range: 165–356 mm
Pinion spindle bore (large end): 99.2 mm
Pinion spindle bore taper: 15.478 mm/ft
Work spindle bore (large end): 58.34 mm
Work spindle bore taper: 12.7 mm/ft
Gear cone range: 89–267 mm
Lapping torque load: 2–22 Nm
H (Pinion Cone) servo drive motor: 6 Nm
V (Vertical Offset) servo drive motor: 12 Nm
G (Gear Cone) servo drive motor: 6 Nm
A (Pinion Spindle) servo drive motor: 14 kW
C (Gear Spindle) servo drive motor: 14 kW
