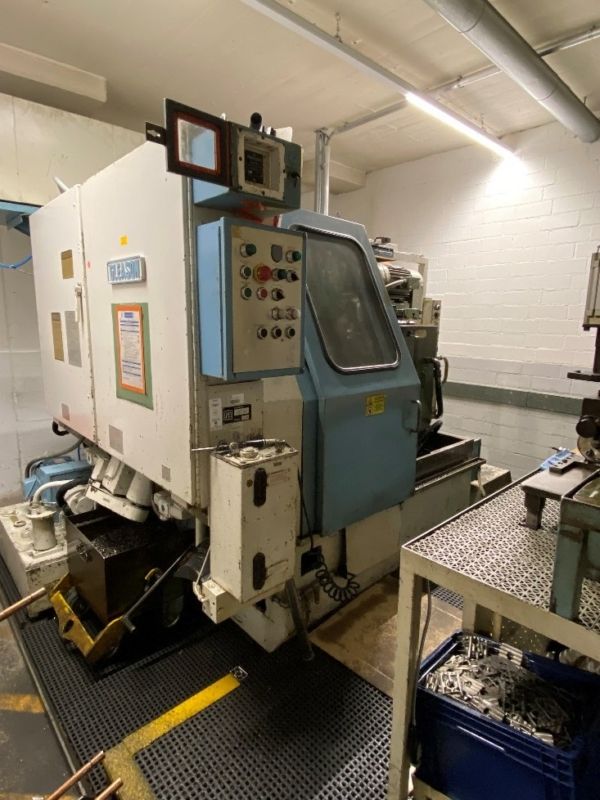

Gleason REVACYCLE 726 Variable Speed Gear cutting machines / Bevel Gear Generator - Straight

Min./max. foot cone angle: 15° / 55°
Pitch circle diameter: 152 mm
Max. tooth height with 21° finished broach head: 10.7 mm
Max. tooth width at tooth root with 21°: 28 mm
Broach head diameter: 200 mm
Number of teeth range: 8–50
Max. broach head diameter: 0.21"
Diameter of the tapered bore at the wide end: 99.219 mm
Clamping length at 304.8 mm: 15.478 mm
Taper depth: 15.875 mm
Diameter of the entire spindle bore: 22.225 mm
Maximum tooth height: 14.8 mm
Maximum tooth width at the root: 28 mm
Maximum root angle: 55°
Minimum root angle: 15°
Milling head speed: 32.6–49.7 m/min
Feed speeds: 2–3.1 s/tooth
Index range: 8–50 mm
Diameter of taper bore at large end: 99 mm
Taper per foot: 15.4 mm
Depth of taper: 15.8 mm
Countersink behind taper: 57.2 × 77.9 mm
Diameter of the bore through the spindle: 22.3 mm
Main drive motor power: 10 HP
Main drive motor speed (60/50 Hz): 1800/1500 rpm
Hydraulic motor speed (60/50 Hz): 1800/1500 rpm
Coolant pump speed (60/50 Hz): 3600/3000 rpm
Chip screw motor speed (60/50 Hz): 1800/1500 rpm
Footprint: 320 × 221 cm
Total weight: approx. 9 t
