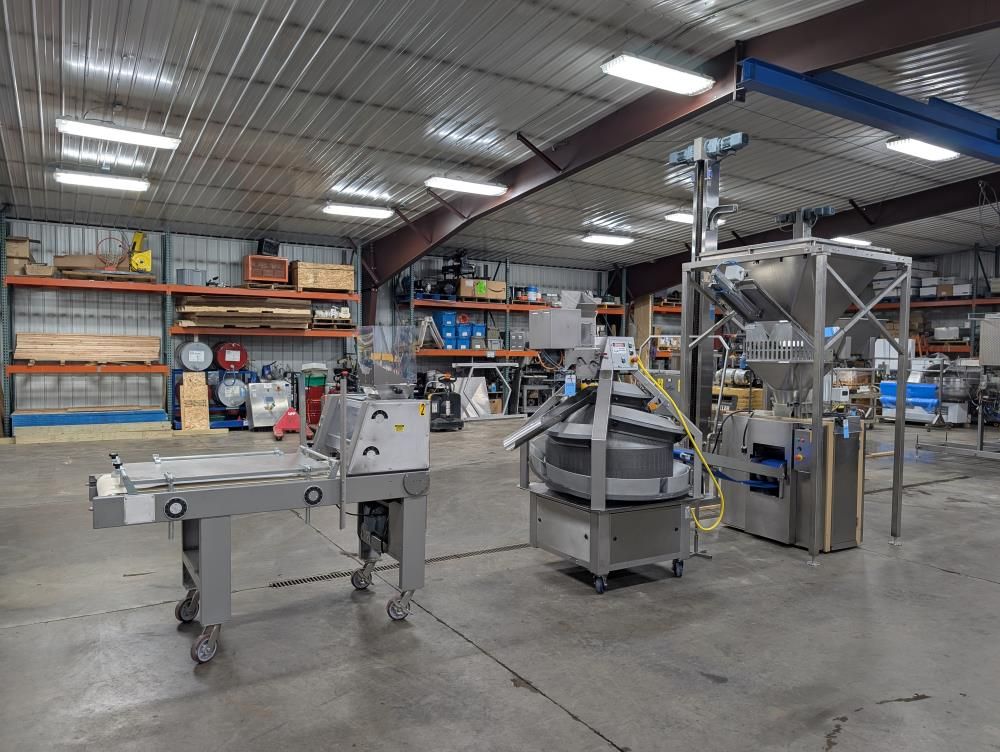

Benier, Glimek 2 Pocket Bread Line

with Glimek & Benier Components
Dough Trough Dumper
Glimek BL+BH dough trough dump with three stainless steel troughs
600 kg capacity
Stainless steel column with steel base
Right-hand dump, current pivot height 130 in.
Stainless forks: 30 in. long, 18 in. on center, 3 in. diameter
Operator safety gate
Controls: up/down, manual/auto, open/close (chunker)
Electrical: 230 volt, 3 phase, 50/60 Hz, 1.1 kW
Overall: 66 in. L x 64 in. W x 166 in. H, approx. 1500 lbs

(3) Millard Dough Troughs
Inside: 39.5 in. L x 49.5 in. W x 23 in. D
1.5 in. drain, on casters
Overall: 42 in. L x 50 in. W x 35 in. H, 301 lbs each

Dough Chunker
Stainless steel frame and hopper: 47 in. L x 47 in. W x 36 in. D
Infeed height: 107 in., discharge height: 62 in.
Pneumatic slide gate: 15.5 in. W x 18.5 in. L aperture
Clearance between legs: 55 in. W x 48 in. L
Overall: 72 in. L x 60 in. W x 107 in. H, 564 lbs

Benier 2 Pocket Dough Divider
Model B80 (8012)
SS hopper: 25 in. L x 21 in. W x 16 in. D, 66 in. tall infeed
Discharge conveyor: 52 in. L x 11.75 in. W x 37 in. H
SS control panel, Allen Bradley PowerFlex 4 VFD, auto lube system
Electrical: 230V, 3 Phase, 60 Hz
Output:
 - 1 Pocket: 400–1800g (600–1360 pcs/hr)
 - 2 Pocket: 100–860g (1200–2720 pcs/hr)
Shipping: 53 in. L x 50 in. W x 74 in. H
Overall: 88 in. L x 53 in. W x 66 in. H, 1501 lbs

Benier Conical Dough Rounder (2019)
Model: Tall Round Spec
Infeed height: 34 in., discharge: 47 in. (without extensions)
Flour duster with variable speed, sight glasses
Controls: start, stop, reset, e-stop
Stainless steel frame on casters
Electrical: 208/230V, 3 Phase, 60 Hz, 10 amp
Overall: 64 in. L x 53 in. W x 89 in. H, 1311 lbs

Omni Conveyor Intermediate Proofer
T-style, 8-pocket design
2-pocket infeed with basket feeder
560 total baskets: 8 in. x 8 in. x 3.5 in.
70 total trays, 64.5 in. wide
Steel frame, adjustable speed controls

Glimek Dough Moulder
Model M0671A
(4) Poly rollers: (2) 9.75 in., (2) 15.75 in.
SS infeed hopper: 11 in. L x 11 in. W x 5 in. D (plus extensions)
Conveyor: 70 in. L x 26.75 in. W x 38 in. H
Adjustable side guides and top plate (43 in. L x 25.5 in. W)
SS chain drag, SS construction, on casters
Electrical: 208V, 3 Phase, 60 Hz, 5 amp
Overall: 78 in. L x 36 in. W x 76 in. H, 816 lbs
