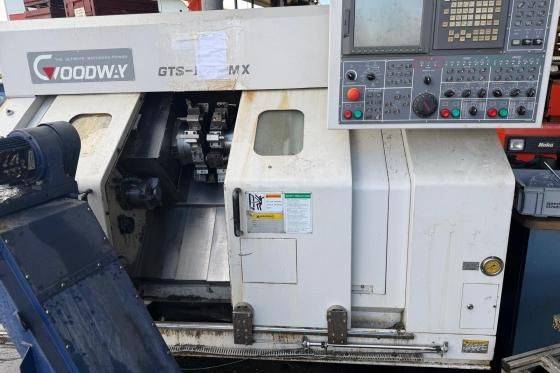

Goodway FANUC 18i-TB 4000 rpm GTS 150-MMX 2 Axis

X-axis travel: 160 mm
Z-axis travel: 210/600 mm
Control: FANUC 18i-TB
Max turning diameter: 180 mm
Spindle bore: 33 mm
Spindle speed: 4000 rpm
Distance between main spindle and left turret: 404 mm
Distance between spindle and sub spindle nose (min): 260 mm
Distance between spindle and sub spindle nose (max): 760 mm
Double chuck: 168 mm
Turret: 12-station servo turret
Machine dimensions (L×W×H): 3100×1700×1800 mm

Features:
Twin spindle and twin turret configuration
Optional Y-axis control on both turrets
One-piece 45° slant bed structure
High-precision linear guide rail design
High-rigidity box-way design on GTS-200 series
Both spindles identical for front and rear machining
Maximum spindle speed up to 6000 rpm (Ø42 mm bar capacity)
