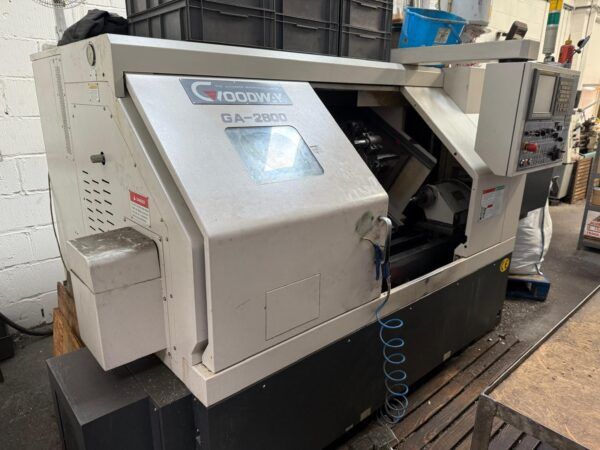

Goodway FANUC Oi‑TC 3,500 rpm GA-2800 2007

X-axis travel: 205 mm
Z-axis travel: up to 1,230 mm
rapid traverse X: 20 m/min
rapid traverse Z: 24 m/min
control: FANUC Oi‑TC
bar capacity: Ø 75 mm
swing diameter over bed: 580 mm
swing over saddle: 400 mm
maximum turnable diameter: 350 mm
turning length (C): 260 mm
turning length (M): 575 mm
turning length (LM): 1,155 mm
spindle bore: Ø 90 mm
spindle speed range: 35–3,500 rpm
spindle power: 11 kW continuous
spindle power (peak): 15 kW
spindle torque (30 min rating): ~325 N·m
turret: 12-station AC-servo indexing
chuck: 3-jaw (203 mm or 254 mm options)
tailstock: programmable
tailstock taper: MT-4
tailstock quill diameter: 70 mm
tailstock quill travel: 150 mm
construction: hardened and ground box guideways
capacity: 250 kg workpiece
