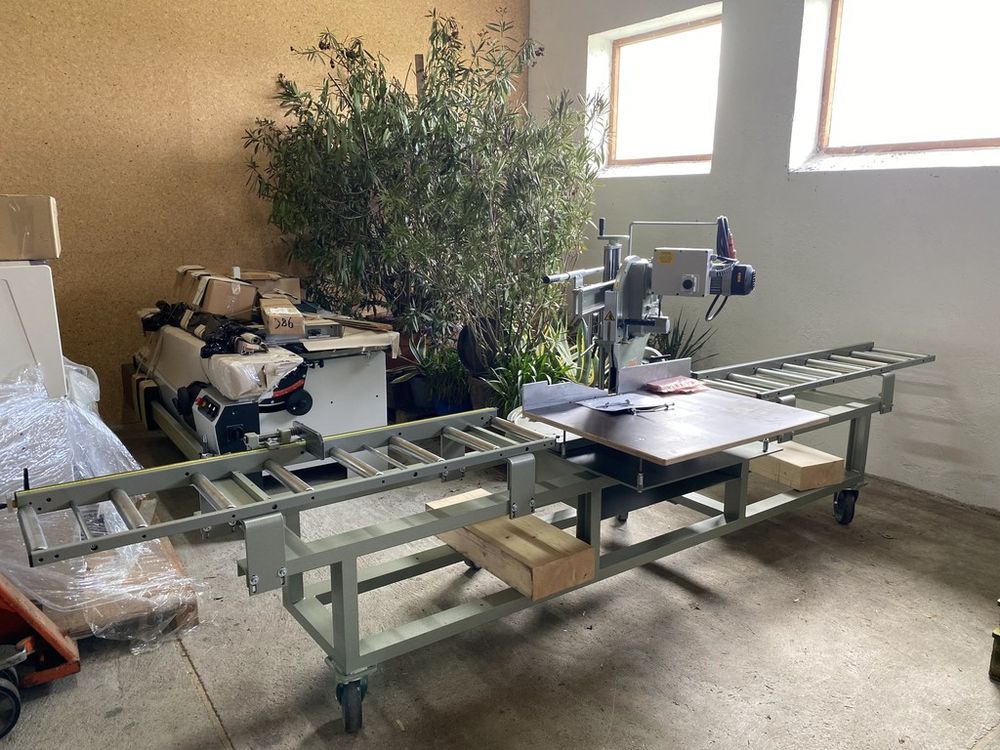

Graule ZS 200N-F

Cross cut saws
Depth of cut at 90°: 200 mm
Depth of cut at 45°: 140 mm
Cutting width at 90°: 420 mm
Cutting width at 45°: 295 mm
Miter range horizontal: 45° -90° -25°
Miter range vertically: 60° -90° -30°
Sawblade diameter: 520 mm
rpm: 2800 U/min
Motor: 5 kW
motor brake: yes
suction plant diameter: 100 mm
weight: 490 kg

Suitable for: wood, PVC, alu cross-cut and mitre saw with maximum cutting height of 200mm
stable grey cast iron construction
precise ball bearing guide of the tool slide on hardened and ground steel shafts manual saw feed
fast mitre adjustment up to 25° horizontal and 30° vertical readjustable fixed stops at 90° and 45°
lower saw blade protection can be connected to extraction system machine mounted on mobile machine base
with 1.5 m long roller conveyors left and right left side with scale and stop slide
