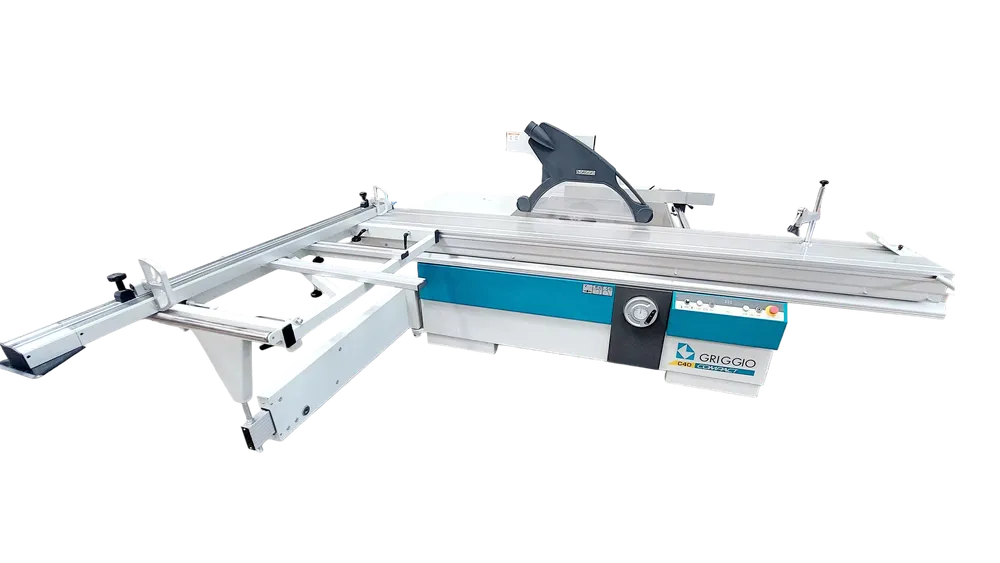

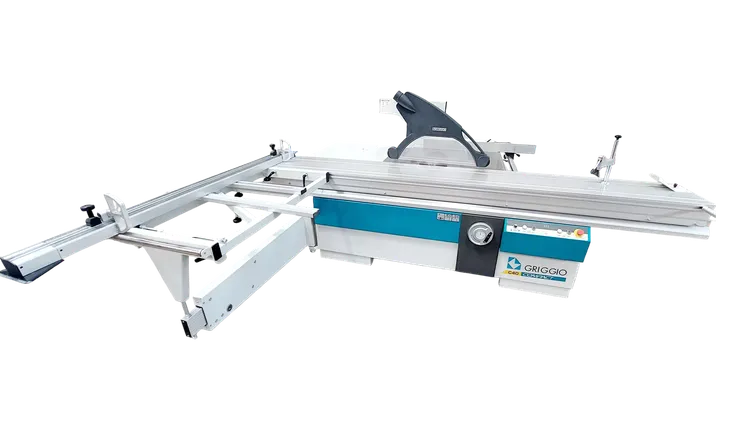

Griggio C40 COMPACT

PANEL SAW WITH GRINDER
MACHINING CAPACITIES :
- Ripping length, carriage travel 3100 mm
- Maximum cutting width with parallel guide: 1250 mm
- Maximum squaring capacity (end cutting, crosscutting) 3400 mm
- Tiltable blades 0-45°
Maximum cutting height at 90°: 130mm & at 45°: 90mm
- Blade speeds 3000/4000/5000 rpm
- Inciser speed 8000 rpm,
Max height 4mm

COMPOSITION :
- Robust welded steel frame
- Worktop height 87cm
Main table (WxD) 1020 x 690 mm
Side extension of the table (WxD) 1020x680 mm
Rear extension 750 x 690 cm
- Blade guard suspended on a support arm
- Saw blade Max Ø400 mm Bore Ø30 mm
- Incising blade Ø120 mm Bore Ø20 mm
- Electric adjustment of the blade assembly's raising and lowering mechanism
Parallel guide on round bar, retractable to the side with 2-position profile, 1100 x 90 mm
- Sliding carriage flush with the blade, 418 x 3500 mm, including end handle
Eccentric clamp, clamping shoe (rip stop), front handle & pusher
- Squaring table (Side frame) WxD: 650 x 1200 mm
Telescopic and tiltable graduated ruler, L 2 to 3.40 m
2 reversible precision stops (magnifying glasses on rulers)
Intermediate supports in the frame at 400 mm from the trolley with angle indication and a free and removable
End roller to aid loading/unloading

OTHER FEATURES :
- General power supply 400V. Three-phase 50Hz IN max 9A
- Automatic star-delta start
- 5.5 kW (7.5 hp) saw motor
- Independent 0.55 kW incising motor
Suction: Top opening Ø 60mm, bottom opening Ø 100mm
- Ideal flow rate 1300 m3/h, minimum air velocity: 20 m/s
- CE marking, Lockable disconnect switch, Emergency stop buttons
Dimensions for transport when disassembled (LxWxH): 3.55 x 2.10 x 1.50m
Weight 1000 kg
