Griggio GF 27
Ref :
2808123-15-AW
Condition :
Used
Manufacturer :
Griggio
Model :
GF 27
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

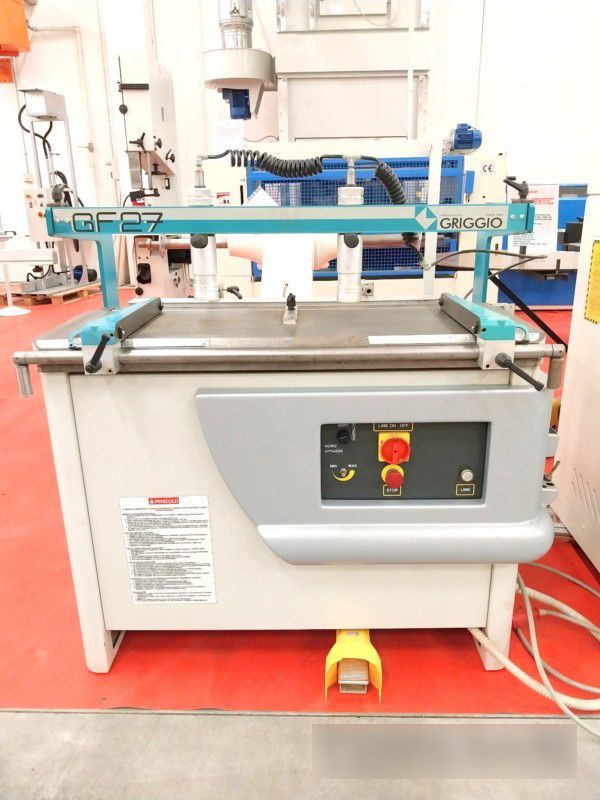

Multiple boring machine with 27 spindles for furniture, custom-made furniture,
kitchens, joinery, panels, bathroom furniture and various – CE Standard
Technical specifications:
N° 27 quick-change spindles
Centre-to-centre distance between each spindle 32 mm
Total centre-to-centre distance between the first and last spindle 832 mm
Max drilling depth 85 mm
Table dimensions 1050 x 380 mm
Motor 2 Hp
N°2 pneumatic workpiece clamps
Squares on the worktable
Drill bit holder
Pneumatic head tilting from 0 to 90°, allowing drilling in any position
Extension rods for stop holders
Quick Dept
Overall dimensions mm 1200 x 780 x 1300 h
Weight kg 360
