Priess-Horstmann BAT

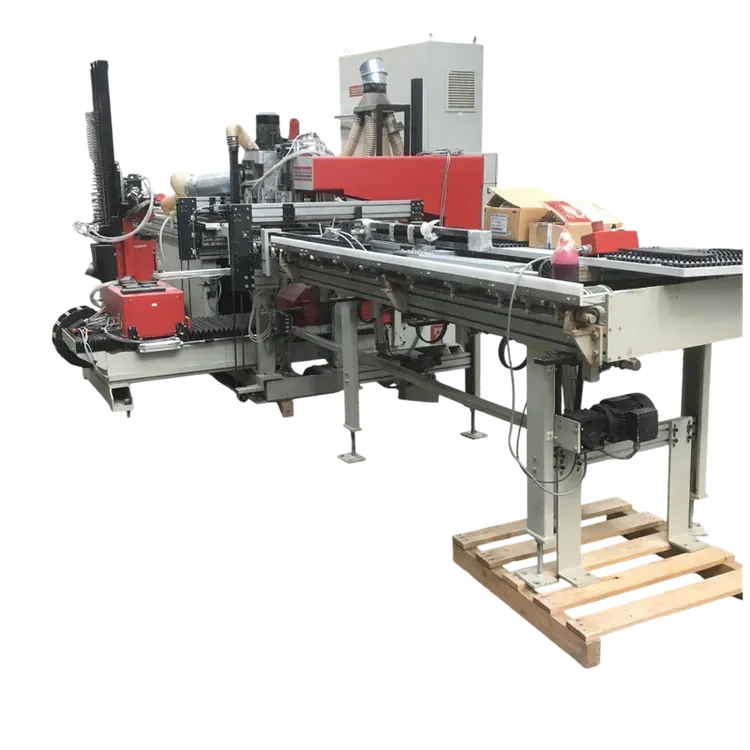

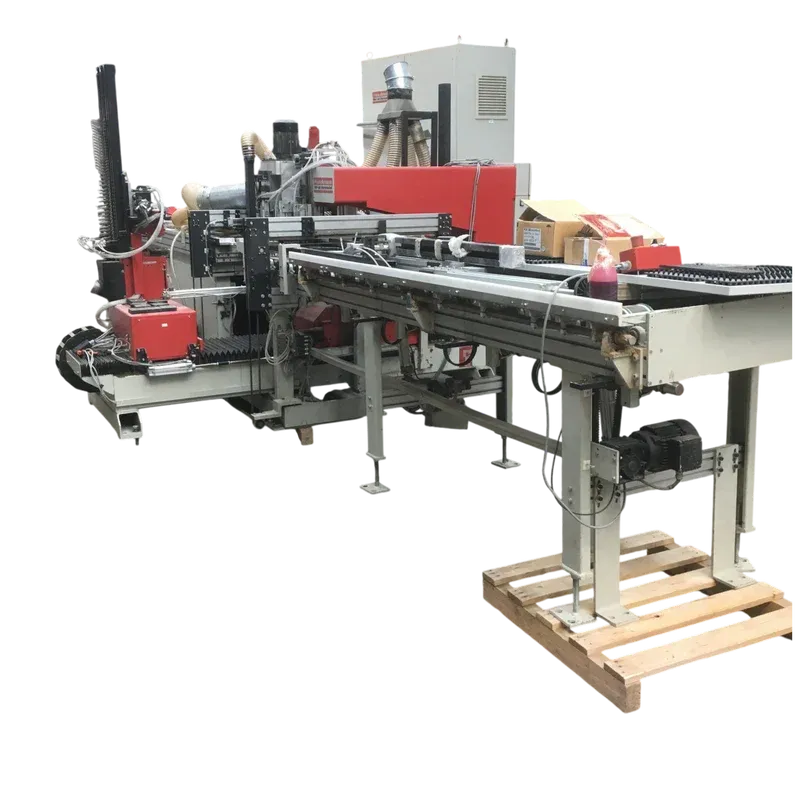

CNC Drilling and Insertion Machine Door Manufacturing Hardware Drilling Machine
First delivery 2001
Condition used, unrestored, functional
Weight approx. 4000 kg

Workpiece Dimensions:
Workpiece length 300 to 2500 mm
Workpiece width 200 to 800 mm
Workpiece thickness 16 to 30 mm
Working height approx. 970 mm

Servo Positioning System
Positioning via ball-bearing spindles with backlash-free nut
Digital three-phase servo motors with 4-quadrant controllers
Travel speed X and Y axes approx. 70 m/min
Drilling cycle approx. 2 seconds
Insertion cycle approx. 3 seconds

CNC Control:
Ferrocontrol CNC screen control
10.4 inch TFT color monitor
Dust-protected keyboard in the control panel
Programs are managed via external PC
Drilling patterns and production programs are stored via host computer

Electrical Data:
Connection 400 V ±10 %
Frequency 50 Hz
Power approx. 12 kW

Pneumatics:
Maintenance unit R 1/2 with pressure monitoring
Operating pressure approx. 6 to 7 bar

Extraction:
Recommended air velocity min. 32 m/s
Vacuum approx. 2200 Pa

Machine Equipment:
Serial interface RS232 for connecting a PC as a programming station
Serial interface RS232 for modem and remote maintenance
Programming software for IBM compatible PCs

Features:
CNC controlled drilling and insertion machine
Precise processing of hinges and hardware
Commission-controlled door manufacturing
Stable machine frame with precision guides
Servo positioning system for high processing accuracy
User-friendly CNC screen control

Area of Application:
Door production
Furniture industry
Interior finishing
Series production of hinge and hardware drillings
