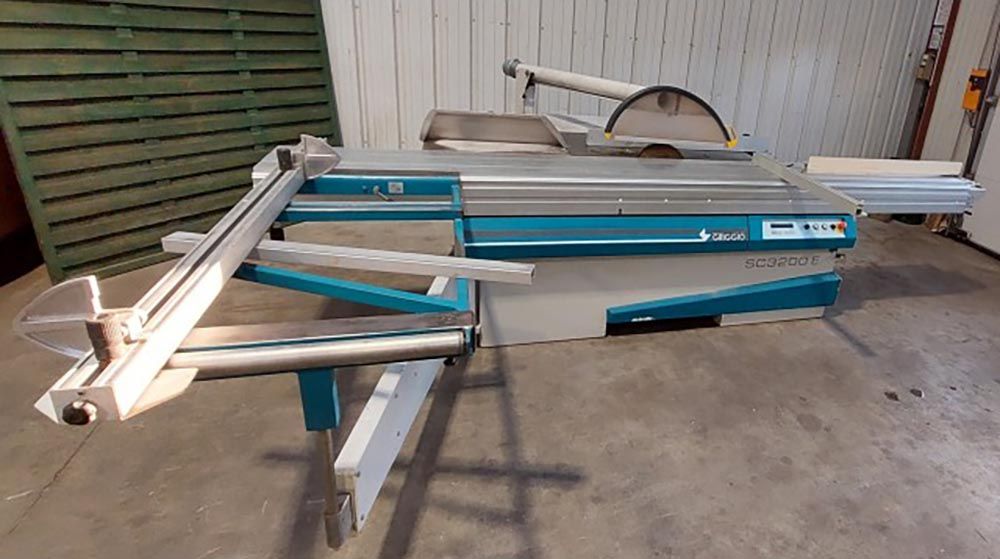

Griggio SC 3200 E

SECTION SAW, SCORTING BLADE, WITH 3.80M FLUSH-TO-BLADE CARRIAGE
Electrically controlled blade lift and tilt with digital display
For panel cutting

MAKING CAPACITIES:
- Cutting length (useful travel of the carriage) 3800 mm
- Maximum cutting width with rip fence 1250 mm
- Squaring cutting capacity (perpendicular cut) 3200 mm
- Blades tilt 90° - 45°
Maximum cutting height at 90°: 155 mm & at 45°: 115 mm
- Blade speeds 3200 / 4000 / 6000 rpm
- Scoring saw speed: 8000 rpm

COMPOSITION:
- Mechanically welded frame
- Main table (WxD): 1155 x 730 mm
Height from ground (working height): 920 mm
Fixed side table extension (WxD): 1155 x 730 mm
Fixed rear table extension for reverse movement (WxD): 400 x 730 mm
Rear fence with precision manual adjustment
- Blade guard suspended on a bracket
Max. saw blade diameter: 450 mm, bore: Ø 30 mm
(with scoring saw mounted)
Scoring saw blade diameter: 125 mm, bore: Ø 20 mm
- Front digital height and tilt control and display. - Wide sliding aluminum carriage, 3800 x 385 mm, flush with the blade, with handle
- Squaring table (side frame), 1425 x 540 mm
On adjustable and retractable support
Intermediate supports in the frame, starting from the carriage, 440 mm, and 1 removable support
End roller for loading assistance
- Graduated and telescopic cross rule, tilting, maximum length 3200 mm
2 reversible precision stops (magnifying glasses)

OTHER FEATURES:
- 380V main power supply. Three-phase 50Hz IN 14.7A
- Automatic star-delta starting
- Installed power 6.41kW
- Saw motor 5.5 kW (7.5 hp)
- Scoring motor 0.55 kW (0.75 hp)
- Extraction: 2 x 120 Ø mm, minimum required flow rate 1300 m3/h
- CE marked, disconnect switch, and mushroom-type stops

Transport dimensions (LxWxH): 3950 x 3600 x H. 1350 mm
Weight: 1030 kg
