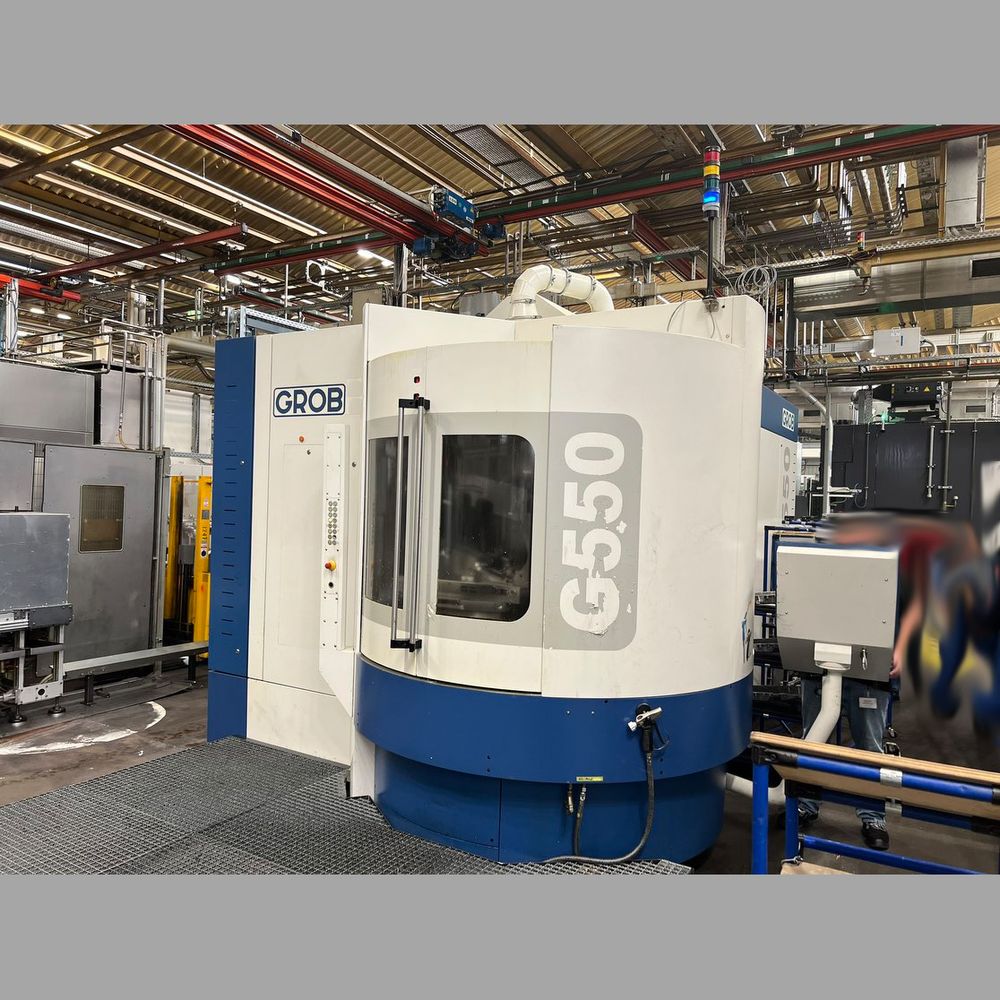

Grob G 550 3 Axis

Travel X 800 mm
Travel Y 1020 mm
Travel Z 970 mm
Max. rapid traverse X/Y/Z 65/50/80 m/min
Max. acceleration X/Y/Z 6.0/4.5/6.5 m/s²
Feed force X/Y/Z 8000/8000/12000 N
Tool taper HSK-A 100
Max. speed milling spindle 10,000 1/min
Max. power at 10-40/100% duty ratio 65/54 kW
Max. torque at 10-40/100% duty ratio 340 Nm
Spindle diameter in front bearing 110 mm
Chain-type tool magazine 2x30 stations
Max. tool diameter 118 mm
Max. tool diameter without adjacent tools 260 mm
Max. tool length 500 mm
Max. workpiece weight 22 kg
Chip-to-chip time 4.7 s
Pallet changer 2-fold
Pallet size 630x630 mm

Equipped With:
Swivel rotary table
Swivel unit NC-controlled
Rotary table NC-controlled
IR-measuring probe
Fully enclosed work area
Light in working area
Oil-/emulsion mist extraction unit
Scraper-type chip conveyor
Discharge height chip conveyor 1100 mm
Internal coolant supply
Flush gun
Coolant unit with paperband filter
High pressure pump 40 bar
Modem for remote diagnosis and TeleService
Operating panel GROB4Pilot
Mobile operating device for setup operation
Warning lamp
1 set tool holder for drilling and milling tools (approx. 80 pcs.)

General Technical Data:
Air supply 5 bar
Operating voltage 400/50 V/Hz
Machine weight approx. 27,900 kg
