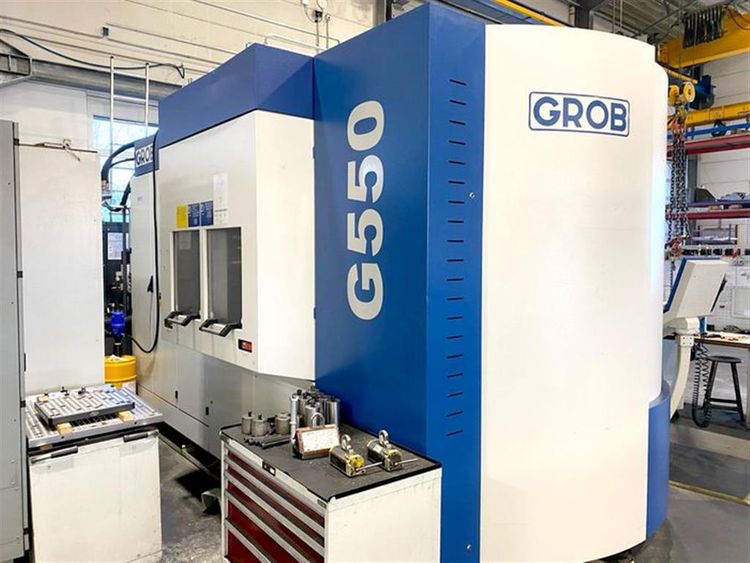

Grob G 550 5 Axis

X-axis travel: 800 mm
Y-axis travel: 950 mm
Z-axis travel: 1020 mm
A-axis: rotary axis
B-axis: swivel axis
Control: HEIDENHAIN iTNC 530
Spindle speed: 16,000 rpm
Spindle motor power: 35 kW
Spindle motor power (continuous): 25 kW
Spindle torque: 160 Nm
Spindle torque (max): 223 Nm
Tool holder: HSK 63
Tool changer capacity: 120 positions
Table size: 770 mm
Maximum table load: 800 kg
Machine weight: 20,000 kg
Space requirement length: 6.15 m
Space requirement width: 3.3 m
Space requirement height: 3.2 m

Features / Equipment
5-axis simultaneous machining
Controlled rotary swivel table
Horizontal milling spindle
High-pressure coolant system 10 bar
High-pressure coolant system 80 bar
Electromechanical tool length measuring system
Chip conveyor
3D touch probe
Kinematic optimization function
Laser tool measuring system
Oil mist extraction system
Electronic handwheel
Power-on hours counter
Spindle hours counter
