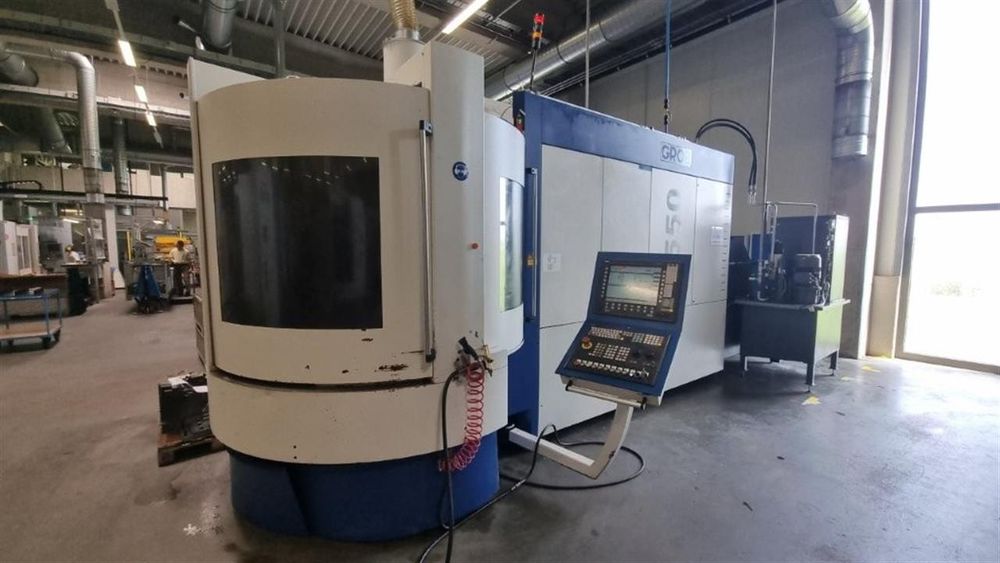

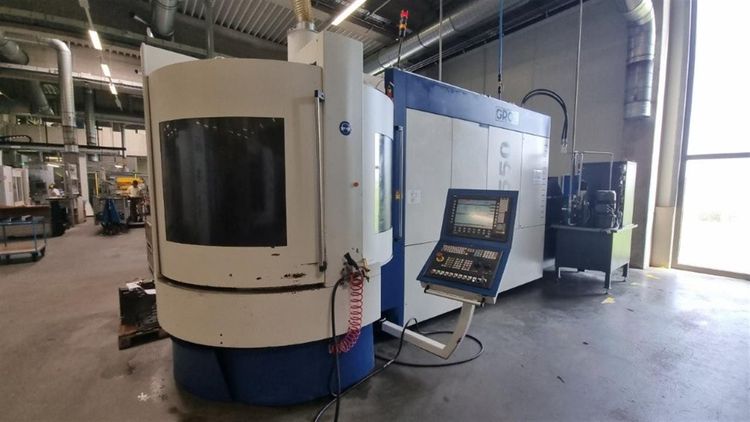

Grob G 550 6-axis (5&U) 6 Axis

X-Axis Travel: 800 mm
Y-Axis Travel: 950 mm
Z-Axis Travel: 1020 mm

Spindle Speed: 10,000 RPM
Spindle Power: 26 / 20 kW
Spindle Torque: 340 / 262 Nm

Tool Taper: HSK-A 100
Tool Changer Capacity: 120 (2 × 60)

Pallet Size: 630 × 630 mm (Twin Pallet System)
Table Load Capacity: 800 kg

CNC Control: Siemens 840D sl MDynamics Operate
6-Axis Simultaneous Machining Center
Controlled Swivel-Rotary Table (A/B Axis)
U-Axis MAPAL Tooltronic System
180° Swivel Table Overhead Positioning
High-Pressure Coolant System: 10–80 bar / 10–200 bar (dual channel)
Through-Spindle Coolant
BLUM Laser Tool Measuring System
M&H 3D Touch Probe
Electronic Handwheel (Siemens HT8)
Chip Conveyor
Coolant Shower System
Air Gun
Oil Skimmer
Automatic Door
Remote Diagnostics

Machine Weight: Approx. 20 t
Machine Dimensions: 3.3 × 6.15 × 3.2 m
