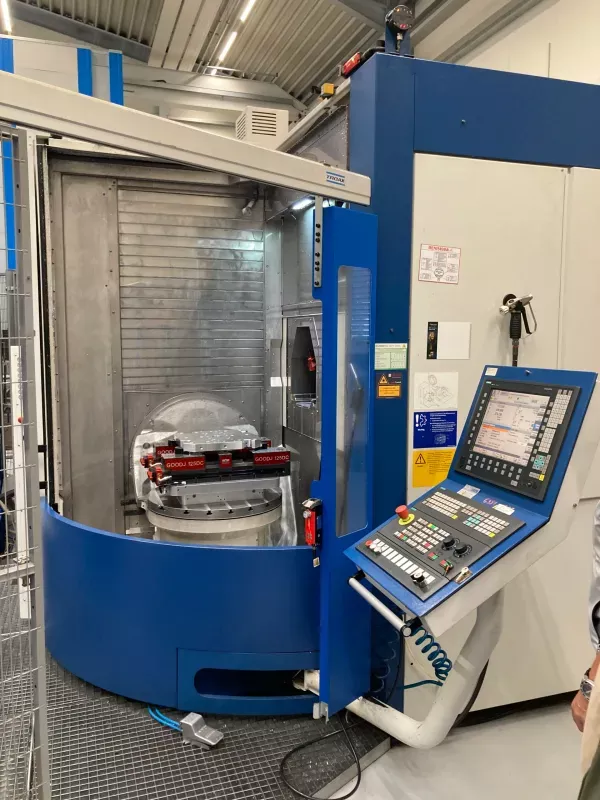

Grob G550 with TM167 Magazine 5 Axis

Control system: Siemens 840 SL
Hard disk: 30 GB

Travel X-axis: 800 mm
Travel Y-axis: 1020 mm
Travel Z-axis: 970 mm
A-axis: -185° / +45°
B-axis: 360°
Rapid traverse X/Y/Z: 65 / 50 / 80 m/min

Rotary table diameter: 770 mm
Interference circle diameter: 900 mm
Table load capacity: 700 kg
6-way pneumatic rotary feedthrough: Yes
Spindle speed: 16000 rpm
Spindle power: 32 kW
Spindle torque: 206 Nm
Tool holder: HSK-A63
Tool changer capacity: 50 positions

Max. tool diameter: 72 mm
Max. tool diameter with 2 free positions: 150 mm
Max. tool diameter with 3 free positions: 160 mm
Max. tool diameter with 4 free positions: 225 mm
Max. tool diameter with 5 free positions: 250 mm
Max. tool length: 465 mm
Max. tool weight: 8 kg

Background magazine positions: 167 (total 217)
Dynamic chain loading: Yes
Spindle hours:
