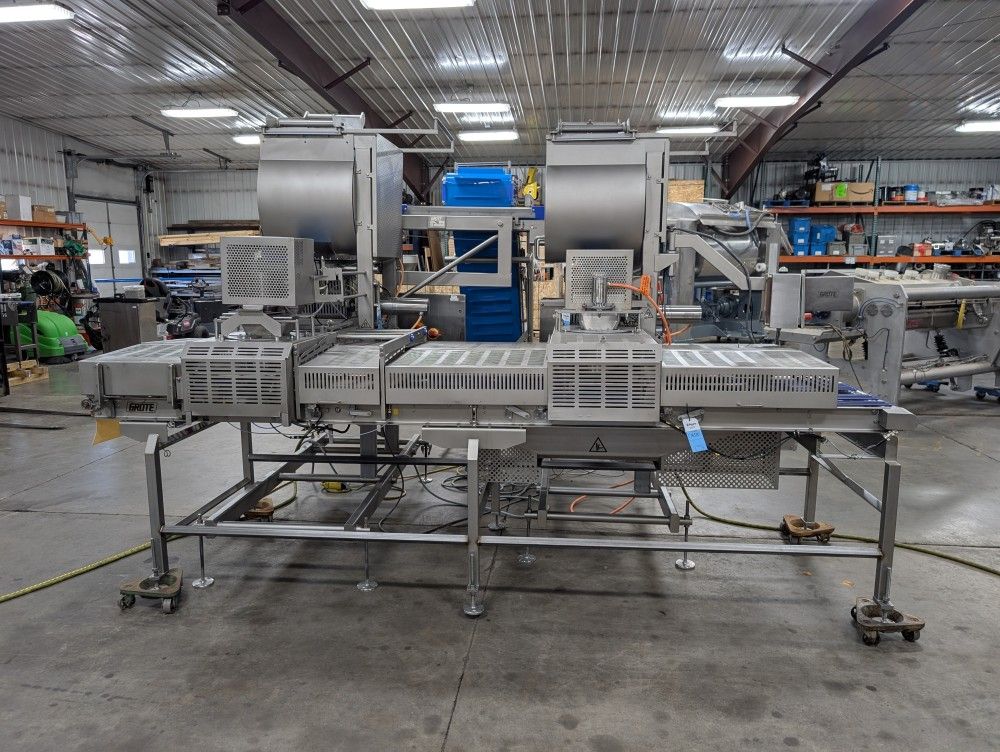

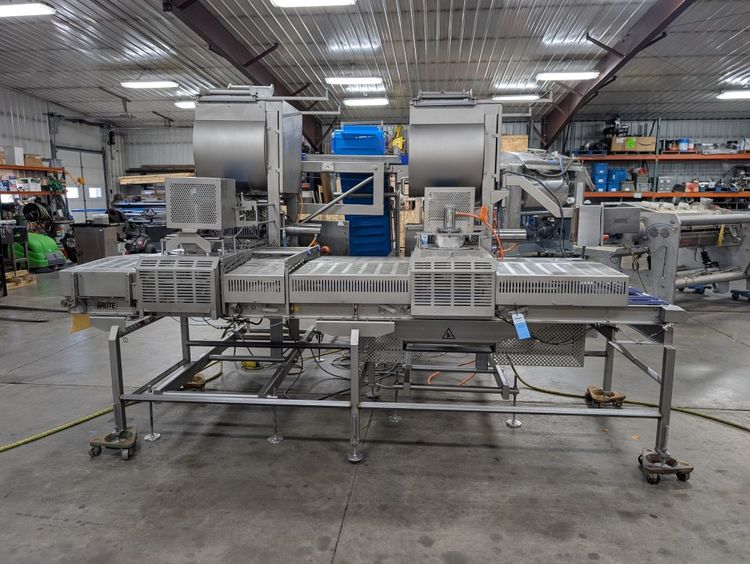

Grote MC-45 TruTop Border Free Topping Applicator System

(1) 2019 Grote TruTop Topping Applicator
Model: TruTop
8 in. wide waterfall applicator
Scaled dump to spin system for even distribution

(1) 2020 Grote TruTop Topping Applicator
Model: MC-45 RH TruTop
8 in. wide waterfall applicator
Scaled dump to spin system

Controls and HMI
7-inch Allen Bradley color touchscreen HMI
Allen Bradley CompactLogix L30ER PLC
Allen Bradley Powerflex 525 vfds
Integrated control for topping applicators and conveyors

Conveyors
Dual Lane Product Band Conveyor
158 in. long x 34 in. wide x 38.5 in. tall
(2) 10 in. dia. SS product chutes
(2) Product drop zones - 17 in. long x 16.5 in. wide w/ Teflon belts
SS motor and frame
Cleated Incline Conveyor
Blue sanitary belt
72 in. long x 20 in. wide (16 in. usable) x 41 in. tall infeed, 82 in. tall discharge
Cleat spacing 4.75 in. x 1.5 in. tall
SS motor and frame
Allen Bradley vfd

Bi-Directional Metering Conveyor (Feeds MC-45s)
Positioned before the topping applicators
Blue sanitary belt
64 in. long x 8 in. wide
Mounted on load cells for precise portioning

Power Requirements
208V, 3 Phase, 60 Hz
