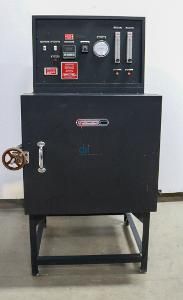

Gruenberg B100CN46

Maximum Temperature 538 ºC (1,000 ºF, 811 ºK)
Heat/Cool Controls
Control Type Programmable
Overtemperature Protection YES
Chart Recorder None
Capacity/Volume Box 4.63 cu ft (0.13 cu m)
Chamber Size
Width 20.00 in (50.80 cm)
Depth 20.00 in (50.80 cm)
Height 20.00 in (50.80 cm)
Number of Gas Inputs 1
Size of Gas Input 1/4"
Type of Flow Control Manual
Accessories

Contains 9 shelves
Circulation Fan is mounted in the rear wall plenum
Partlow Temperature Controller
Watlow Series 385 High Limit Controller
Adjustable High & Low N2 Flow Meters for the Nitrogen Purge System
Magnehelic Differential Pressure Gauge CAT. NO. 2002

Other Information
Partlow Temperature Controller: Up to 8 profiles can be programmed. Each profile can contain up to six segments. Each segment contains a ramp and a soak operation.
Magnehelic Differential Pressure Gauge: Measures 0 - 2 PSIG on the chamber.
Power Input 9 KW
