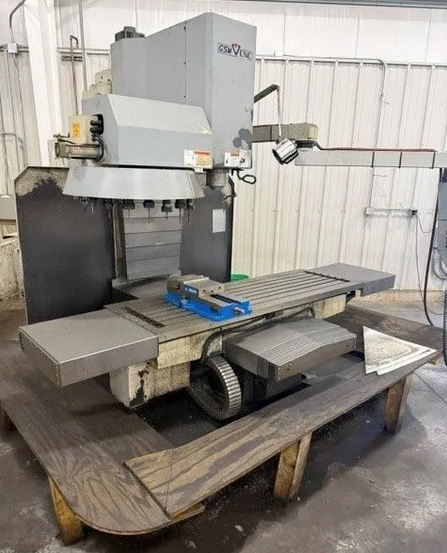

GSM 1500L 3 Axis

X-axis travel: 1500 mm
Y-axis travel: 650 mm
Z-axis travel: 620 mm
Feed rate: 0–5 m/min
Rapid traverse: 0–10 m/min
Control: Fagor CNC
3 axes
Table size: 1800 × 450 mm
T-slot: 16 × 5 × 60 mm
Maximum table load: 1000 kg
Spindle speed: 8000 rpm
Optional spindle speed: 10000 rpm
Spindle motor power: 10/15 hp
Spindle taper: BT40 / CAT40
Ball screw diameter: 40 mm
Tool magazine: 20 positions
Machine dimensions: 2640 × 2280 × 2540 mm
Machine weight: 4000 kg
20-station automatic tool changer
Box guideways
Work light
Coolant system
480 V, 3-phase power
