GT635

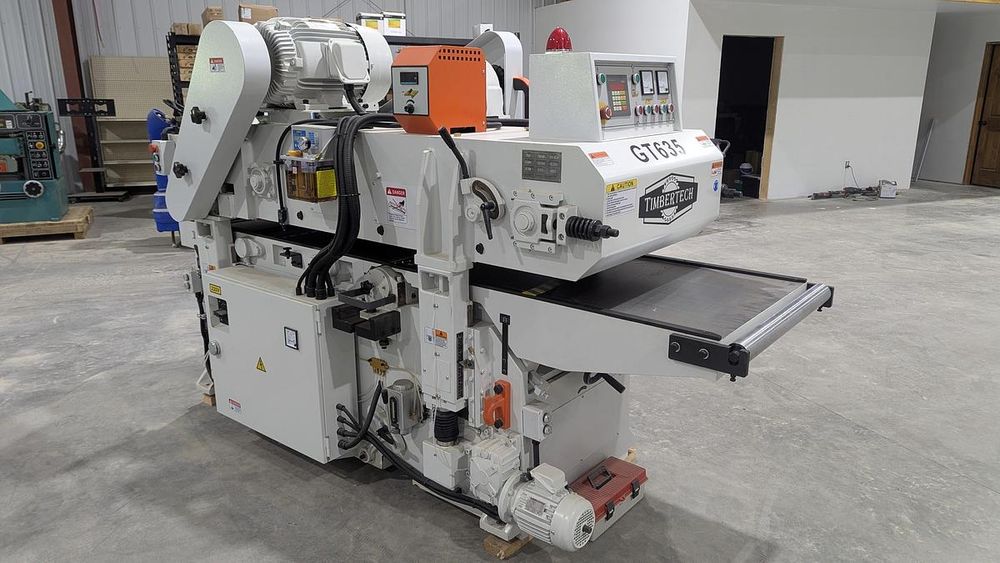

Timbertech GT635 Double Surface Planer
Condition Used
Max working width 635mm(25”)
Max working thickness 200mm(8”)
Min working thickness 0.39''
Min working length 12.2''
Knife shaft diameter 5000rpm
Variable frequency feed speed 8-18m/min
Dust Port Diameter 5”(Upper)/6”(Lower)
Top Head HP 25HP
Bottom Head HP 20HP
Feed motor 3 HP
Table elevation motor 1/2 HP
WORKTABLE DIMENSIONS 27”x102”
Knife dimensions 15 x 15 x 2.5
Machine dimensions (LxWxH) 105″ x 45.1″ x 67″
Net Weight 6922
Gross Weight 7650

Spring loaded conveyor pin system ensures material is passed over the bottom cutterhead
to resulting in a flat and uniform board prior to planing to thickness on the top head
Spiral insert knife cutterheads with two-sided solid carbide knives produce a smooth finish
with increased stock removal capacity and extremely quiet operation
Heavy-duty cast-iron machine body and table for vibration free cutting
