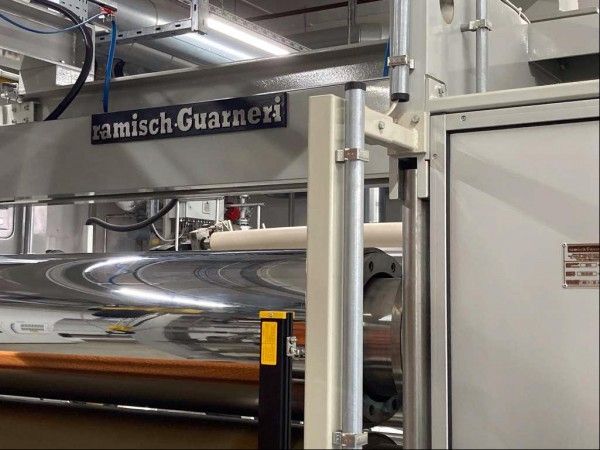

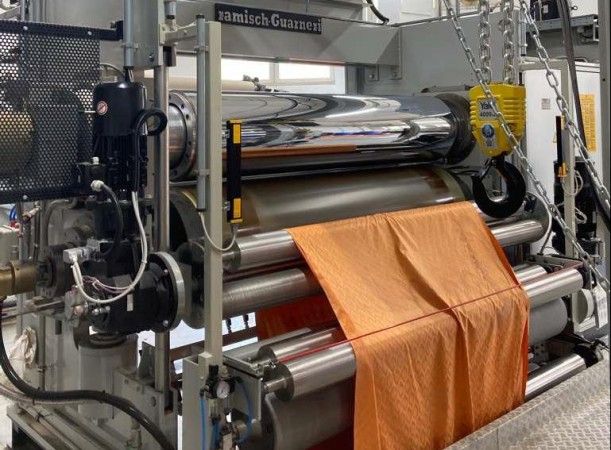

Guarneri RGK.280.2000 200 Cm calender

Application: Simil Mercerisage
Material: Cotton fabric 80-200 g/m²
Roller width: 2000 mm
Max. fabric width: 1800 mm

Roller configuration:
Steel roller: approx. 460 mm diameter
Yamauchi compound roller: approx. 650 mm diameter
Max. pressing force: 800 kN
Adjustable line pressure: crowned for 400 N/mm
Speed ​​range: 4-40 m/min
Heating system: Thermal oil
Heating capacity/inlet temperature: max. 340°C

Installed power requirement:
Driven draw roller pair: approx. 6 kW
Main drive motor: approx. 30 kW
Auxiliary drive Yamauchi roller: approx. 6 kW
Cooling for main drive motor: approx. 0.37 kW
Hydraulic motors: approx. 15.00 kW
Hydraulic cooling: approx. 8.00 kW
Pressure oil circulation lubrication: approx. 4.00 kW
Unwinding: approx. 8.00 kW
Cooling roller: approx. 3.00 kW
Rewinding: approx. 9.00 kW
Thermal oil: approx. 140.00 kW
Auxiliary drives: approx. 2.00 kW

Power connections:
Electrical connection: 400 volts, 50 Hz, 3 phases
Protection class: IP 23
Min. cooling water pressure: 3 bar
Cooling water flow rate/min: 50 - 60 l/min in closed loop
For hydraulic cooling: circuit
Compressed air: 50 l/min at 6 bar
Drive and control side: right in the goods infeed
Connection side of the heater: opposite the drive side
Connection of the auxiliary drives from above: Electrical, water and air systems
