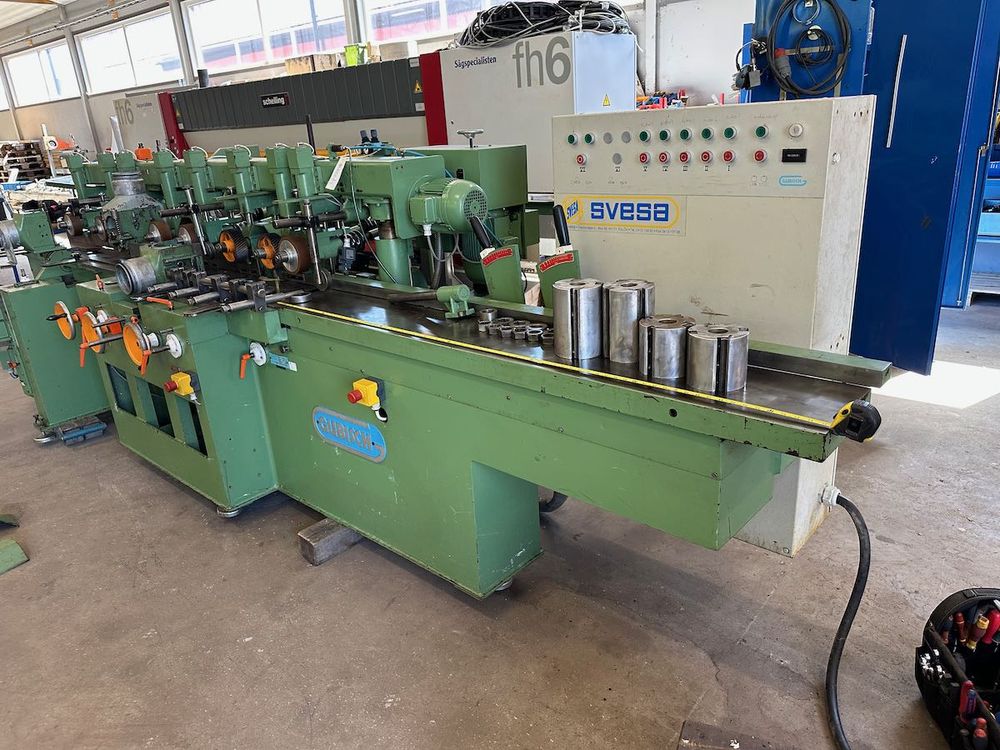

Gubisch BS 170/3

Ref : 2733035-15-MT

Condition : Used

Manufacturer : Gubisch

Model : BS 170/3

Year(s) : 1988

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

4-sided planer
Capacity max wood dimension 180x120mm
Spindles 6 pcs
Spindle order: Below 4kw, right 3kw, left 5.5kw, right 5.5kw, above 7.5kw, universal 7.5kw
Spindle diameter 40mm
Spindle speed 6000v/min
Spindle motors 5.5-7.5kw
Feed wheel 140x50mm
Feed motor 1.5kw
Motor for height adjustment 0.75kw
Feed speed 0-30m/min
Compressed air 6 bar, 150Nl/min
Shaving nozzles 140mm in diam, air speed 25-30m/sec
Power:400 volts,50Hz,3 phase,36kw, 78 AMP
Dimension:4800x1600x1500mm
Weight 3800 kg
