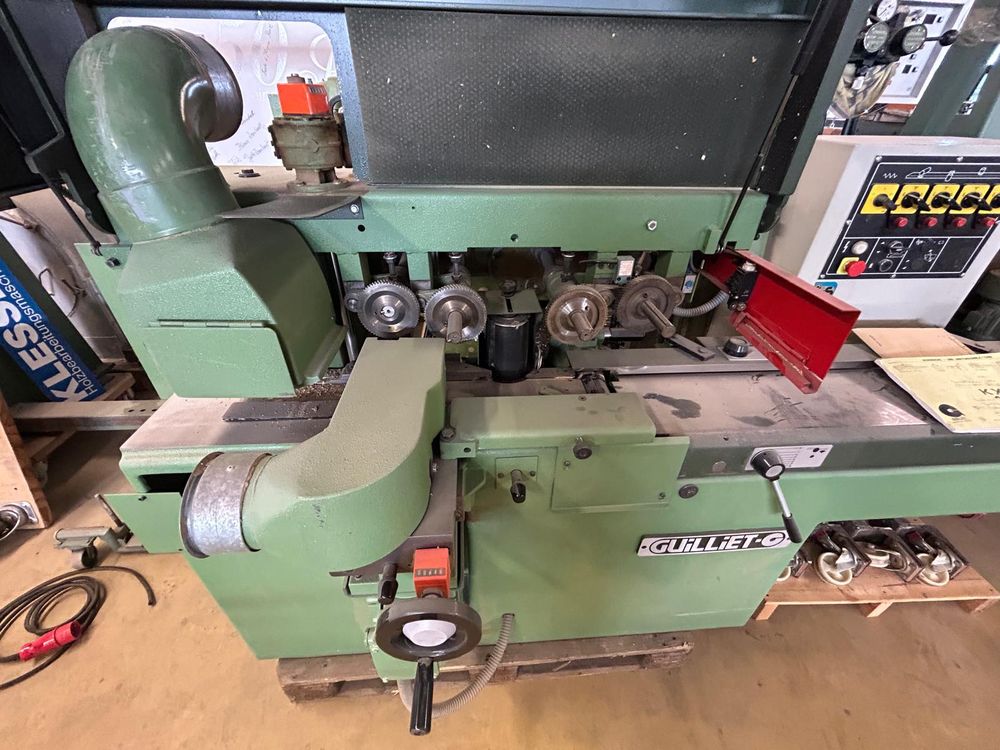

Guillet KXY

Used machine
Technical data:
Length of the jointer table: 2100 mm
Tool spindle diameter: 30 mm
Diameter of the planer heads: 100 mm
Planer shaft speed: 6000 rpm

Working width: 30 - 180 mm
Working height: 6 - 120 mm
With an optional smaller planer head for the left shaft plus narrower feed rollers, a minimum width of 15 mm can be achieved.

Motor power (bottom, left, right): 3.7 kW each
Motor power (top, thicknessing shaft): 5.5 kW
Feed speed: 6 and 12 m/min
Electric height adjustment
With 1/10 increment control

Includes indexing-controlled infeed roller
Includes planer heads
Dust extraction ports: 160/120/120/140 mm
