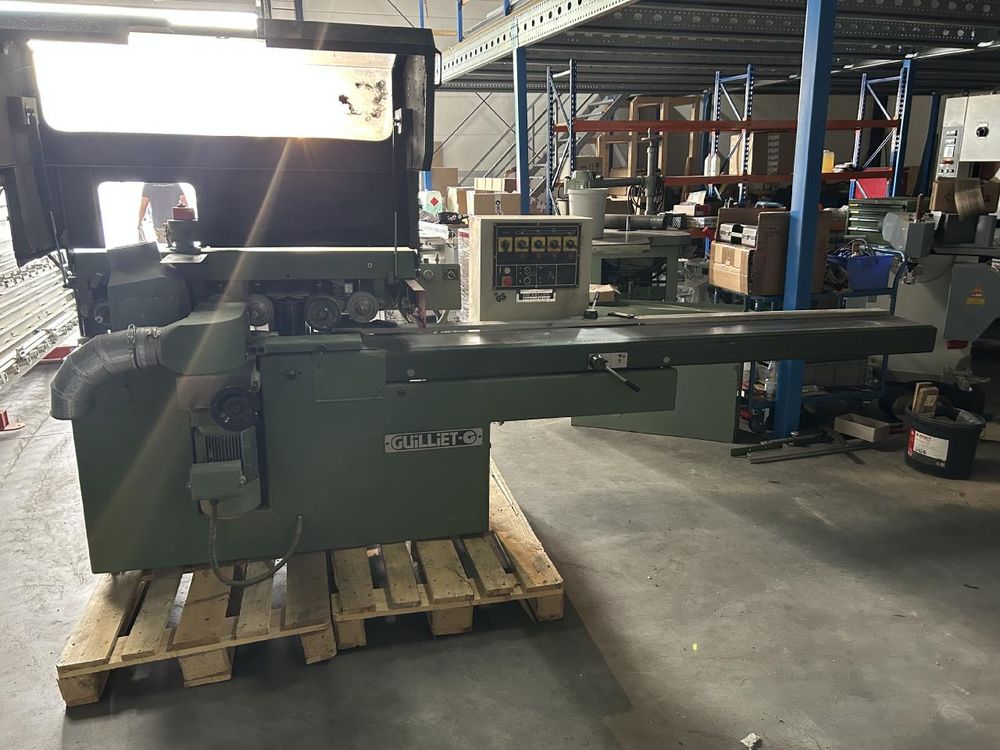

Guilliet KXY

Four-side planer
Used machine

Technical specifications:
Planing table length: 2100 mm
Tool spindle diameter: 30 mm
Planer head diameter: 100 mm
Planer block speed: 6000 rpm

Working width: 30 - 180 mm
Working height: 6 - 120 mm
With the optionally available smaller planer head for the left block and narrower feed rollers, a minimum width of 15 mm can be achieved.
Motor power: bottom, left, and right: 3.7 kW each
Motor power: top (thickness block): 5.5 kW
Feed speed: 6 and 12 m/min
Electrical Height adjustment
with 1/10th touch control

Including cycle-controlled feed roller
Including planer heads
Extraction nozzle 160/120/120/140 mm
