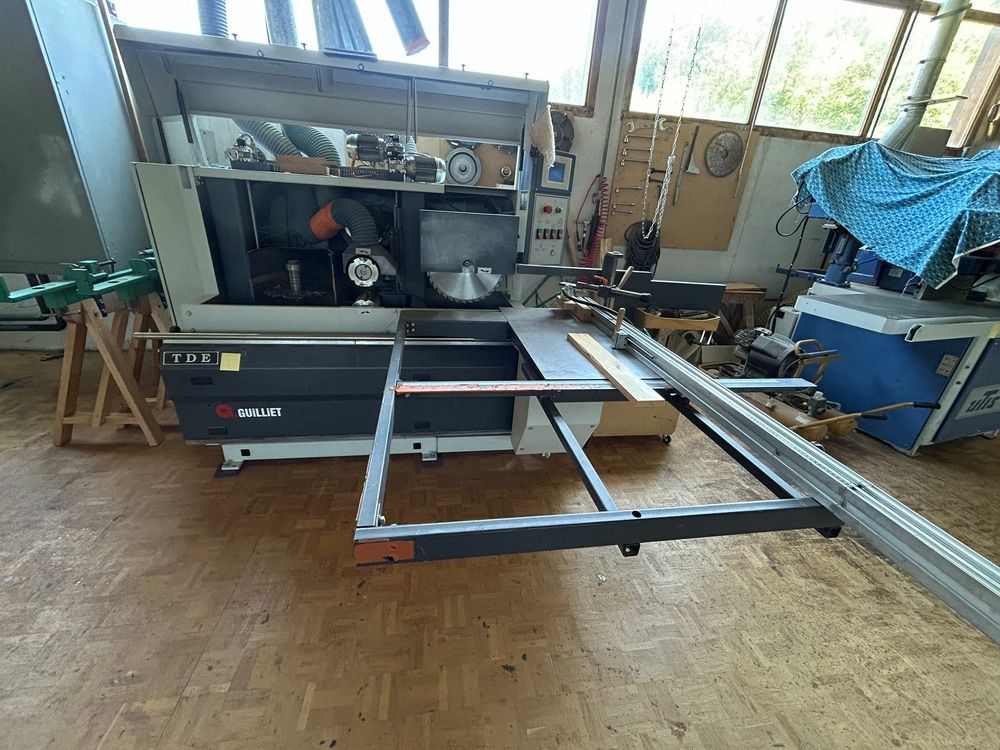

Guilliet TDE04 Tenoners

Saw :
Blade diameter : 400 mm
Shaft diameter : 30 mm
Cutting height : 150 mm
Motor : 3 kW (4 hp), rotation 3000 RPM

Upper unwinder, motorized movement :
Vertical stroke : 150 mm
Horizontal stroke : +40 to -50 mm
Motor : 3 kW (4 hp), rotation 4900 RPM

Lower unwinder, motorized movement :
Vertical stroke: -5 to +60 mm
Motor: 3 kW (4 hp), rotation 4900 RPM

Router, motorized movement :
Shaft diameter 50 mm, useful length 170 mm
Maximum tool diameter : 350 mm
Motor : 4 kW (5.5 hp), rotation 3600 RPM
Motorized carriage (1000 x 1500 mm)
Pneumatic presser
Aluminum ruler, cast iron table
Suction nozzles : 1x80 mm, 1x120 mm, 2x150 mm
