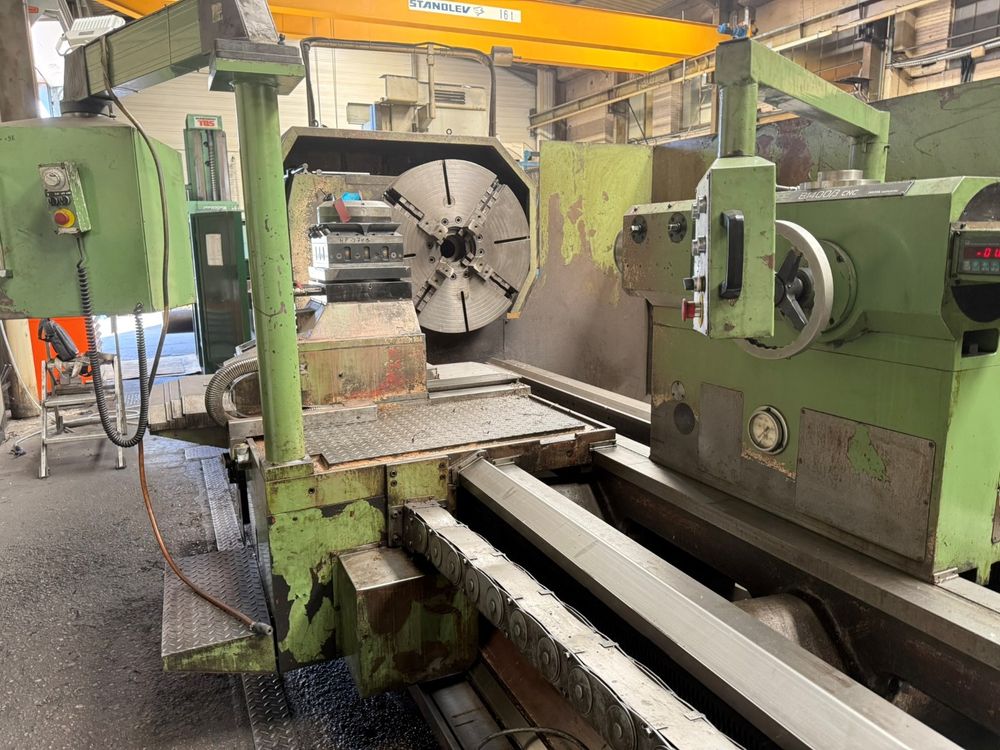

Gurutzpe Engine Lathe 600 rpm (4-Step Gearbox) B 1400/3 x 8000

Ref : 2762924-3-GO

Condition : Used

Manufacturer : Gurutzpe

Type : Engine Lathe

Spindle Speed : 600 rpm (4-Step Gearbox)

Model : B 1400/3 x 8000

Year(s) : 1997

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X Travel 850 mm
Z Travel 8000 mm
Rapid Traverse X/Z 5000 mm/min
NUM Control
Max. Swing Diameter Over Bed 1420 mm
Centre Height 710 mm
Max. Cutting Diameter Over Cross Slide 1150 mm
Chuck Spindle Power 75 HP
Chuck Speed Up to 600 rpm (4-Step Gearbox)
Chuck Torque 16000 Nm
Max. Workpiece Weight Without Steadies 14000 kg
Max. Workpiece Weight With 1 Steady 17000 kg
Max. Workpiece Weight With 2 Steadies 19000 kg
Machine Equipped with 1 Following Steady Rest
Machine Equipped with 2 Fixed Steady Rests
Chip Conveyor
