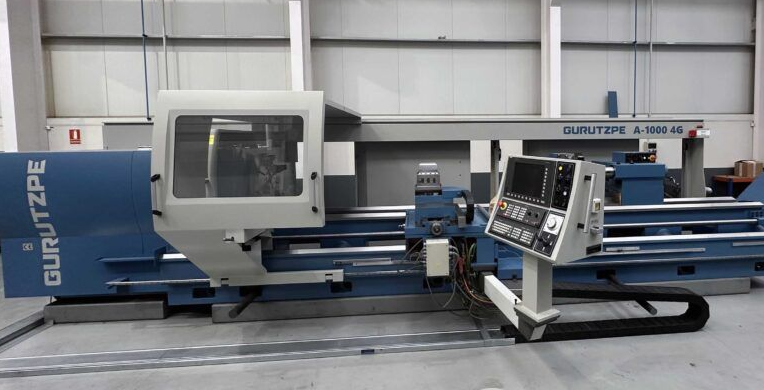

Gurutzpe Siemens Sinumerik 840D CNC control 1600 rpm A-1000 4G X 5000 2 Axis

X-axis travel 530 mm
Z-axis travel 5000 mm
Rapid traverse X-axis 10 m/min
Rapid traverse Z-axis 10 m/min
W-axis CNC-controlled motorized tailstock
V-axis CNC longitudinal movement for steady rest
Siemens Sinumerik 840D CNC control
Front safety door
Chuck guard
Full rear protection
Air conditioning for electrical cabinet
Longitudinal chip conveyor
Bar capacity 105 mm
Maximum swing over bed 900 mm
Maximum swing over cross slide 650 mm
Center height 450 mm
Distance between centers 5000 mm
Spindle speed range 0–1600 rpm
Automatic spindle speed ranges 2
Main spindle motor power 28/34 kW
SAUTER turret model 0.5.320.025
Turret positions 4
Tool size 280 x 280 mm
Independent 4-jaw chuck diameter 600 mm
Hydraulic steady rest capacity 45–310 mm
Fixed steady rest diameter 250 mm
Headstock steady rest with 4-jaw chuck diameter 500 mm
Total installed power 58 kW
Machine length 11125 mm
Machine width 3285 mm
Machine height 2120 mm
Machine weight 20000 kg
