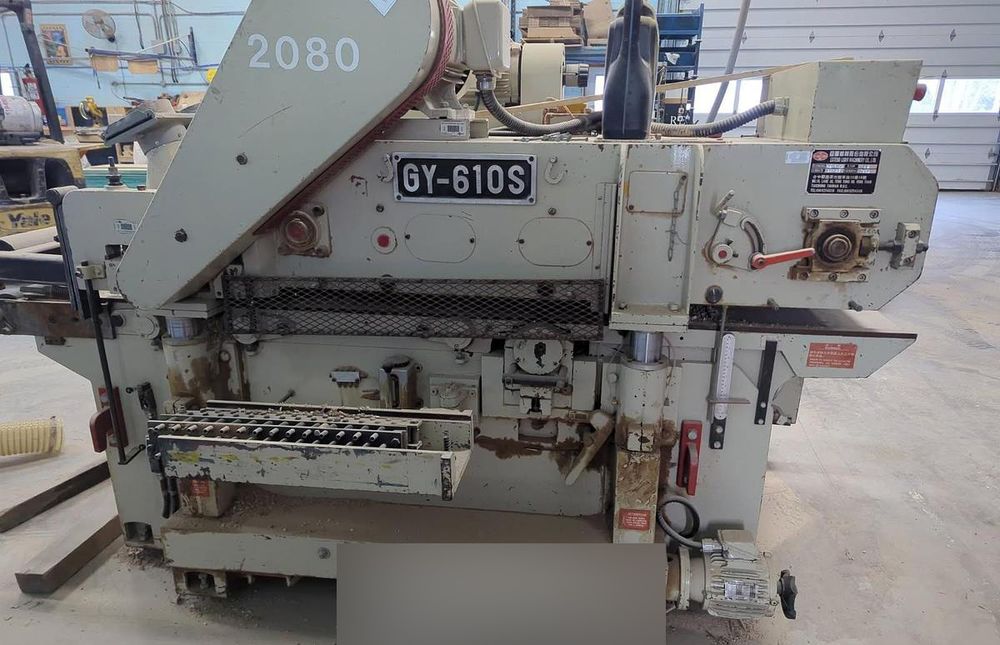

GY-610S

The Extend Light GY-610-S Double Side Planer is a heavy-duty industrial surfacer designed for high-precision, large-scale woodworking.
Often branded as the #1 selling planer in its class, it is built to handle the demands of three-shift production lines while remaining affordable for one-shift operations

EXTEND LIGHT - GY610-S:
Double-Sided Strato Planer 24" x 8" Cap.,
min. material length 12-1/2"
min. thickness 3/8".Equipped with:
25 HP Top & 20 HP Bottom belt drive motors.
Helical Spiral cutterheads that rotate @ 4,600 RPM; (6) rows or spirals of 4-sided carbide inserts 14mm X 14 mm.
Variable feed speed from 20 - 95 FPM; powered by 3 HP drive to lower feed rolls & upper feed mat.
Infeed table: Hard chrome plated for max. wear resistance; relieves upper feed mat with spring loaded spikes;
allows cupped bowed or warped boards to feed into the heads for max. straightening capability.
Powered lowering & raising of bed table on: (4) Columns via a 1 HP motor; handwheel for fine adjustment of thickness control.
Spiral cutterheads; digital control for accurate thickness setting.
Side-mounted electrical control & Operator Panel.
Automatic feed chain tensioning.
Staggered upper infeed fingers to eliminate small part jambs.
