Haas CNC control with 15" color LCD monitor 4,000 RPM ST-20Y 3 Axis

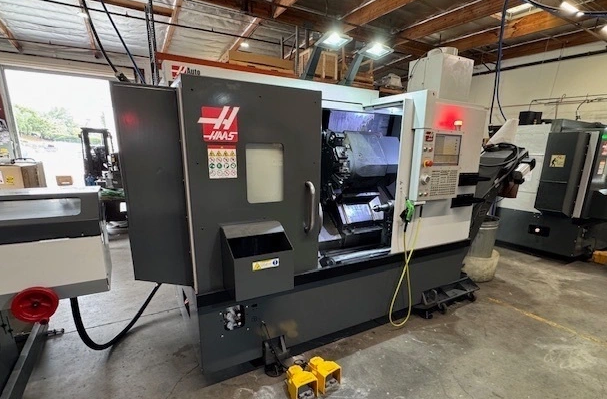

HAAS ST-20Y
Year: 2019

Chuck size: 8.3"
Max part swing: 21"
Max cutting diameter: 11.75"
Max cutting length (varies with workholding): 22.5"
Bar capacity: 2.50"
X axis travel: 8.4"
Y axis travel: 2"
Z axis travel: 22.5"
Rapid feedrate on X & Y: 472 IPM
Rapid feedrate on Z: 945 IPM
Spindle nose: A2-6
Spindle bore: 3.50"
Max rating: 20 HP
Spindle speed: 4,000 RPM
C axis live tooling speed: 6,000 RPM
Spindle C axis rating: 5 HP
Turret stations: 12
Coolant capacity: 55 gallons
Domestic pallet dimensions: 143 in x 90 in x 92 in
Weight: 10,480 lbs

HAAS CNC control with 15" color LCD monitor
High torque C axis live tool
HAAS bar feeder
Programmable hydraulic tailstock
Live and standard tooling
Automatic tool presetter
Chip conveyor
Parts catcher system
USB port and rigid tapping
Coolant system chip strainer and oil skimmer
High intensity lighting
Enclosure exhaust system
Media display M-code
Auto door
Ethernet interface
WiFi connection for the Haas control
Early power failure detection mode
