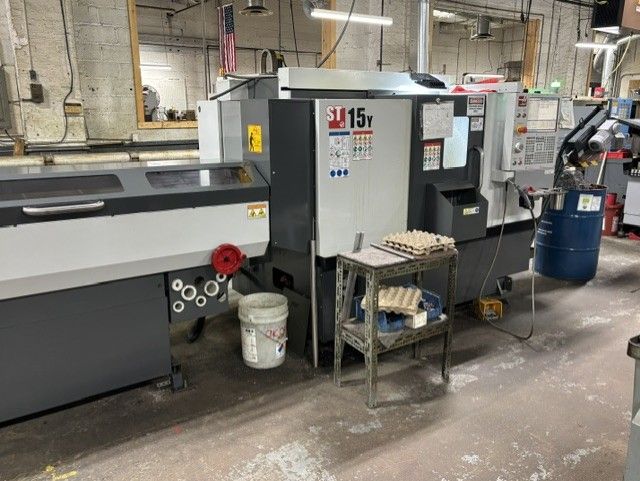

Haas Haas CNC Control 4000 rpm ST-15Y 4 Axis

X-Axis Travel: 7.88 in
Y-Axis Travel: ±2.0 in
Z-Axis Travel: 16.0 in
Rapid Traverse X: 472 ipm
Rapid Traverse Y: 472 ipm
Rapid Traverse Z: 1200 ipm
C-Axis
C-Axis Power: 5 hp
C-Axis Speed: 60 rpm
C-Axis Positioning Accuracy: ±0.01°
Haas CNC Control
Toolsetter
Parts Catcher
Chip Conveyor
Bar Feeder
Tailstock
Chuck Size: 8.3 in
Max Part Swing: 16.5 in
Max Cutting Diameter: 11.0 in
Max Cutting Length: 16.0 in
Bar Capacity: 2.5 in
Spindle Nose: A2-6
Spindle Bore: 3.5 in
Spindle Speed: 4000 rpm
Spindle Power: 20 hp
Spindle Torque: 150 ft-lb @ 500 rpm
12-Position BMT45 Turret
Live Tooling
Live Tool Speed: 4000 rpm
4 Live Toolholders
Static Toolholders Included
Tailstock Taper: MT3
Tailstock Quill Travel: 3.8 in
Tailstock Body Positioning: 20.0 in
Tailstock Thrust: 140–1130 lbf
Machine Type: CNC Turning Center
