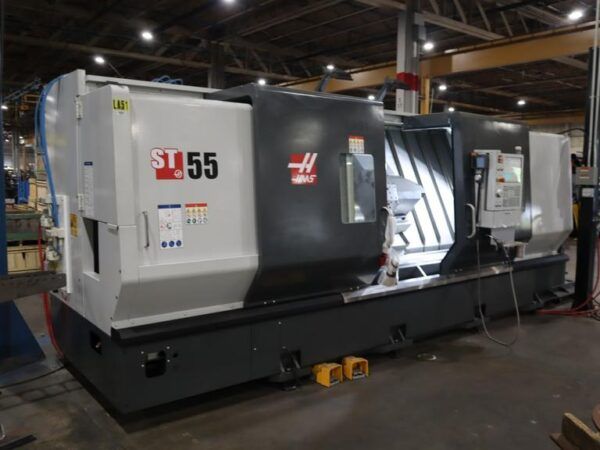

Haas CNC Controller 1,000 rpm ST-55 2 Axis

X-Axis Travel: 17"
Z-Axis Travel: 80"
Rapid Traverse X-Axis: 710 IPM
Rapid Traverse Z-Axis: 320 IPM
Haas Next Generation CNC Control
12 Station Automatic Tool Turret
Programmable Tailstock
2-Speed Gearbox
Hennig Chip Conveyor
1,000 PSI Coolant System
Rigid Tapping
1GB Memory
8 Spare M-Functions
Cabinet Cooler
Ethernet Interface
High-Intensity Lighting
XL Remote Jog Handwheel
Touchscreen
Spindle Orientation
WiFi Connect
2 Remote Foot Actuators
Bar Capacity: 12.5"
Max Swing Over Bed: 34.5"
Max Swing Over Saddle: 25.5"
Max Turning Diameter: 25.5"
Max Turning Length: 80"
Hole Through Spindle: 12.5"
Spindle Speed: 1,000 RPM
Spindle Drive: 55 HP
Spindle Nose: A1-20 Front and Rear Headstock
Tailstock Quill Taper: #6 MT
26" Pneumatic Chucks
12.2" Bore Chucks
Turret Capacity: 12 Stations
2 3" Bore Turret Tool Holders
3 2.5" Bore Turret Tool Holders
1 Bolt-On Turning Holder
Several Turning Clamps for Turret
Chuck Jaws
Manuals
Machine Dimensions: 265" x 102" x 99"
Machine Weight: 31,000 lbs
