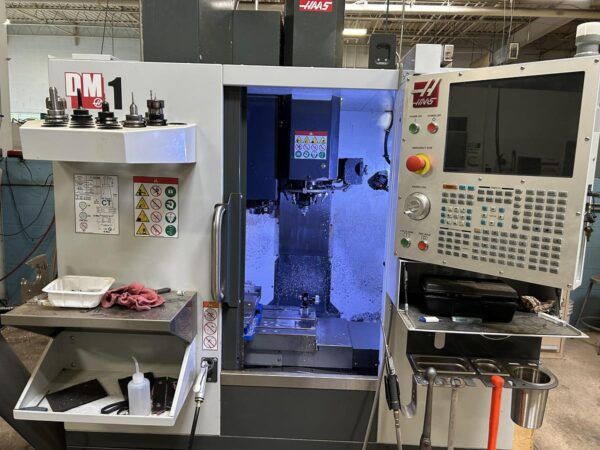

Haas DM-1 3 Axis

Haas DM-1
2019

X-axis travel: 20″
Y-axis travel: 16″
Z-axis travel: 15.5″
Distance from spindle nose to table top: 21.5″
Spindle motor: 15 HP
Spindle speed: 10,000 RPM inline direct drive
Spindle taper: CT#40
Table size: 26″ x 15″
Table weight capacity: 500 lbs
Rapid traverse rate X, Y & Z: 2,400 IPM
Tool changer capacity: 18+1 ATC
Max tapping speed: 5,000 RPM
Approximate machine weight: 5,150 lbs
Haas CNC control
Renishaw part probe
Tool setter
300 PSI through-spindle coolant (CTS)
5,717 cutting hours
Lift-up chip auger
1 Kurt vise
