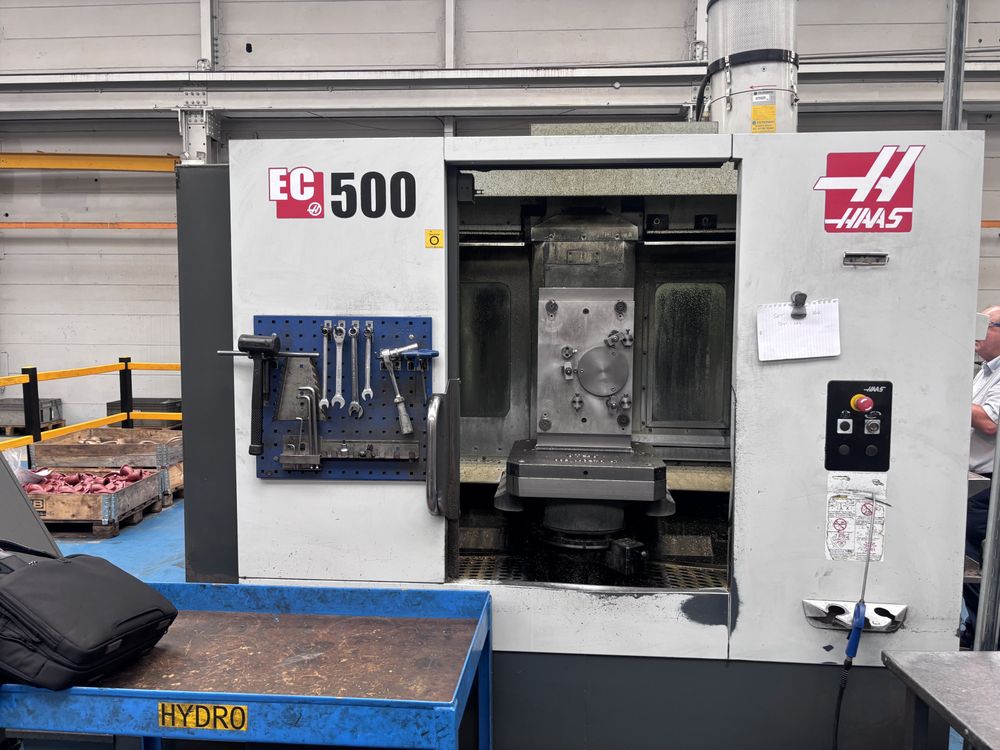

Haas EC-500 4 Axis

B axis
Coolant
Interlocked guards
Low volt light
Spindle probe
Swarf conveyor
Through spindle coolant
Tool setter
Twin pallet

WIPS system (Wireless Intuitive Probing System)
Control: HAAS
Maximum tool diameter: 76mm
Maximum tool diameter with empty adjacent pockets: 152mm
Maximum workpiece weight: 300kg

Number of pallets: 2
Pallet size: 500 x 500mm
Rapid feedrates: 25.4 m/min
Spindle motor power: 20 Hp
Spindle speed: 8000 rpm

Tool change capacity: 70 station
Tool change time (chip to chip): 2.8 seconds
Tool size: BT40

Traverses XYZ: 813 x 508 x 711mm
Machine dimensions: 4191 x 3404 x 2576mm
Machine weight: 12700 kg
