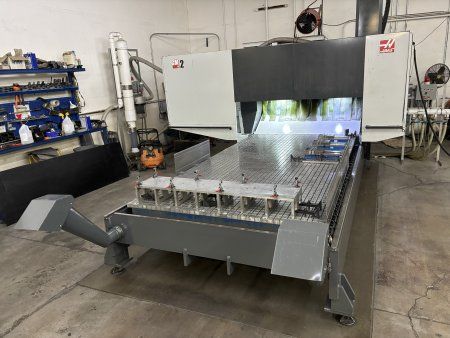

Haas GM-2 HEAVY DUTY 3-AXIS CNC GANTRY MILL 3 Axis

X-Axis Travel: 145"
Y-Axis Travel: 87.5"
Z-Axis Travel: 22"
Maximum Cutting Feed Rate: 472 IPM
Rapid Traverse X-Axis: 472 IPM
Rapid Traverse Y-Axis: 1889 IPM
Rapid Traverse Z-Axis: 1181 IPM
Control: Haas CNC
4th-Axis Drive and Wiring
Wireless Intuitive Probing System
High-Speed Machining
Rigid Tapping
Visual Part Programming System
User-Definable Macros
Coordinate Rotation and Scaling
Spindle Orientation
Ethernet Interface
WiFi Connection for Haas Control
HaasConnect Remote Monitoring
HaasDrop
Media Display M-Code M130
Remote Jog Handle with Touchscreen Display
Second Home Position
Early Power-Failure Detection Module
Maximum Table Weight: 6000 Lbs.
Table Size: 144" x 72"
Between Columns: 75"
Spindle Taper: 40
Spindle Speed: 15000 RPM
Spindle Power: 30 HP
Through-Spindle Coolant
Through-Tool Air Blast
Gantry Router Coolant System
Minimum Quantity Lubrication
Coolant Capacity: 95 Gal
30+1 Side Mount Tool Changer
Maximum Tool Diameter: 2.5"
Maximum Tool Weight: 12.0 Lbs.
Chip Auger
Automatic Air Gun
CNC Control Cabinet Cooler
8 Spare M Functions
M-Code/MFIN Cable Assembly
Vacuum Table Vac-U-Lok 4-Zone with Vacuum Pump
Aluminum Table
Air Required: 100 PSI
Air Consumption: 4 SCFM
Power Requirement: 220V
3-Phase
Machine Dimensions: 226" x 143" x 109"
Weight: 204200 Lbs.
