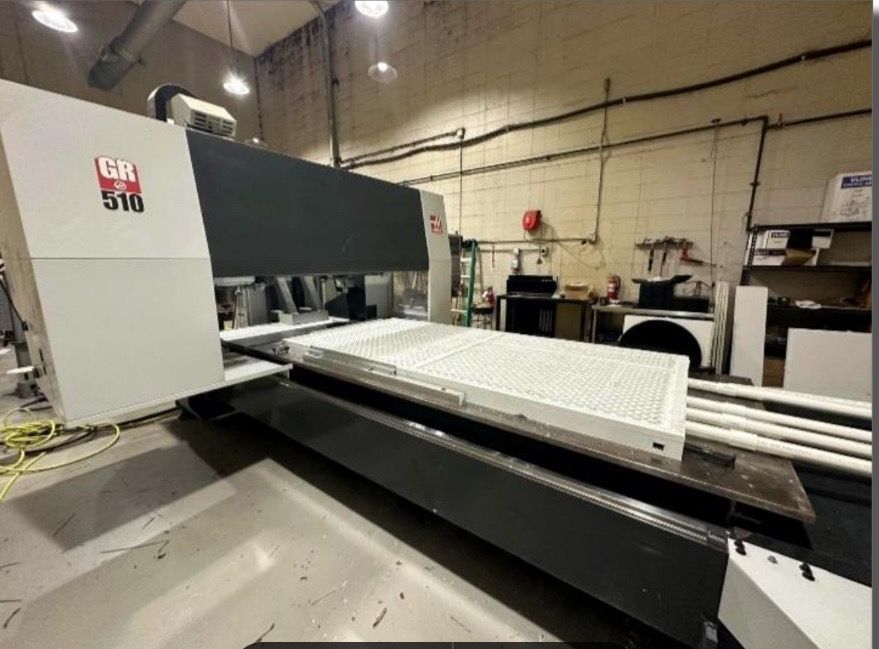

Haas GR-510 Haas CNC Control

X-Axis Travel: 121″
Y-Axis Travel: 61″
Z-Axis Travel: 11″
Haas CNC Control
32 GB Expanded Memory
Ethernet Interface
HaasConnect Remote Monitoring
HaasDrop
Media Display M-code M130
Remote Jog Handle with Touchscreen Display
Early Power Failure Detection Module
Low-Voltage Option
Probe System
Gantry Router Coolant System
Programmable Coolant Nozzle
High-Speed Machining
Second Home Position
Rigid Tapping
Chip Tray Filter Kit
Spindle Speed: 15,000 rpm
Spindle Motor Power: 15 hp
Spindle Taper: CT40
Spindle Nose to Table: 2.5″ – 13.5″
Maximum Torque: 48 ft-lb @ 1,500 rpm
Drive System: Direct Speed Belt Drive
Rapid Traverse X: 800 ipm
Rapid Traverse Y: 2,100 ipm
Rapid Traverse Z: 1,100 ipm
Maximum Cutting Feedrate: 800 ipm
Tool Capacity: 10 Position Carousel
Maximum Tool Diameter (Adjacent Pockets Full): 3.5″
Maximum Tool Weight: 12 lbs
Maximum Table Load: 6,000 lbs
Distance Between Columns: 62″
Dimensions: 206″ × 111″ × 108″
Weight: 19,400 lbs
