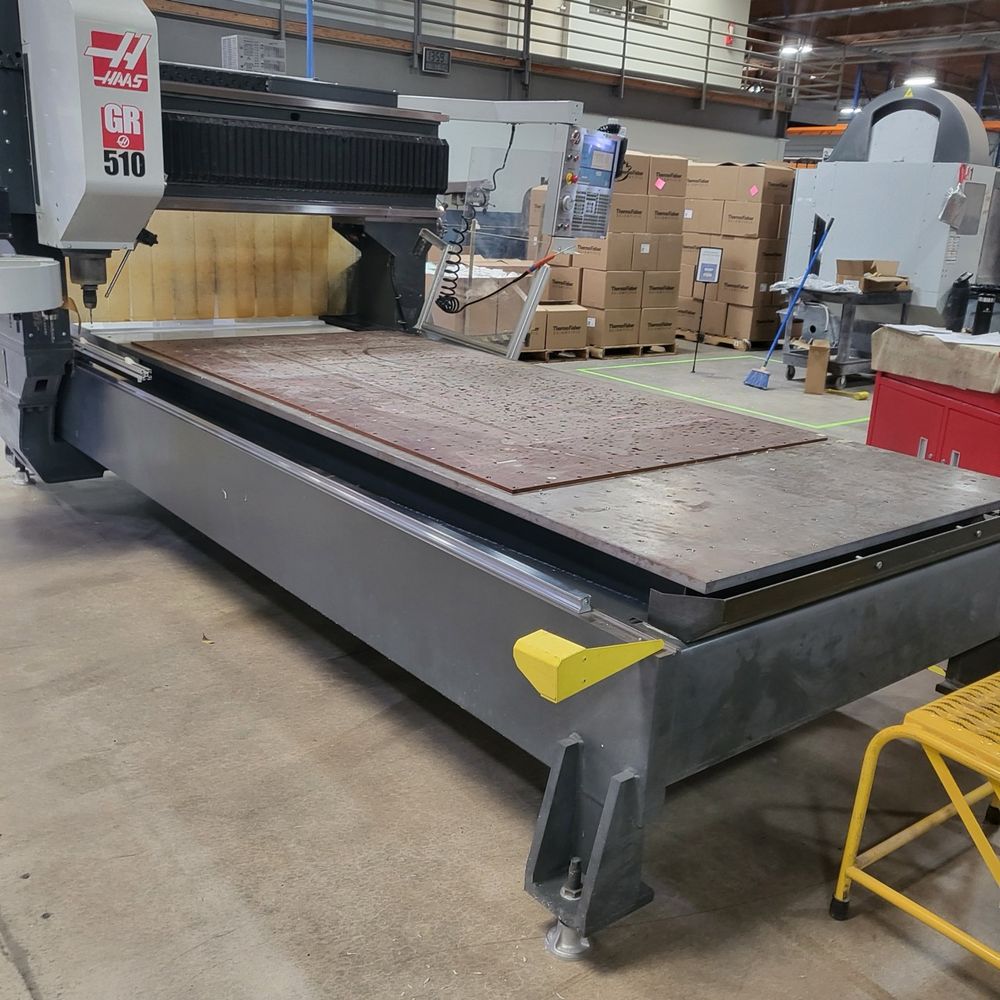

Haas GR510 Haas CNC Control

X-Axis Travel: 121 in
Y-Axis Travel: 61 in
Z-Axis Travel: 11 in
Light Curtain
Airblast
Spindle Speed: 10,000 rpm
Spindle Motor: 15 hp
Spindle Nose to Table: 2.5–13.5 in
Spindle Torque: 48 ft-lb @ 1,500 rpm
Drive System: Direct speed, belt drive
Taper: CT40
Maximum Cutting Feedrate: 800 ipm
Rapid Traverse X: 800 ipm
Rapid Traverse Y: 2,100 ipm
Rapid Traverse Z: 1,100 ipm
Tool Capacity: 10-position carousel
Maximum Tool Diameter (adjacent pockets full): 3.5 in
Maximum Tool Weight: 12 lb
Maximum Table Load: 6,000 lb
Distance Between Columns: 62 in
Machine Dimensions: 206 × 111 × 108 in
Machine Weight: 19,400 lb
Feed Cutting Hours: 2,038
