Haas HAAS 1800 rpm TL-2 2 Axis

Ref : 2721800-3-GO

Condition : Used

Manufacturer : Haas

Controller : HAAS

Spindle Speed : 1800 rpm

Model : TL-2

Nb Of Axis : 2 Axis

Year(s) : 2007

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

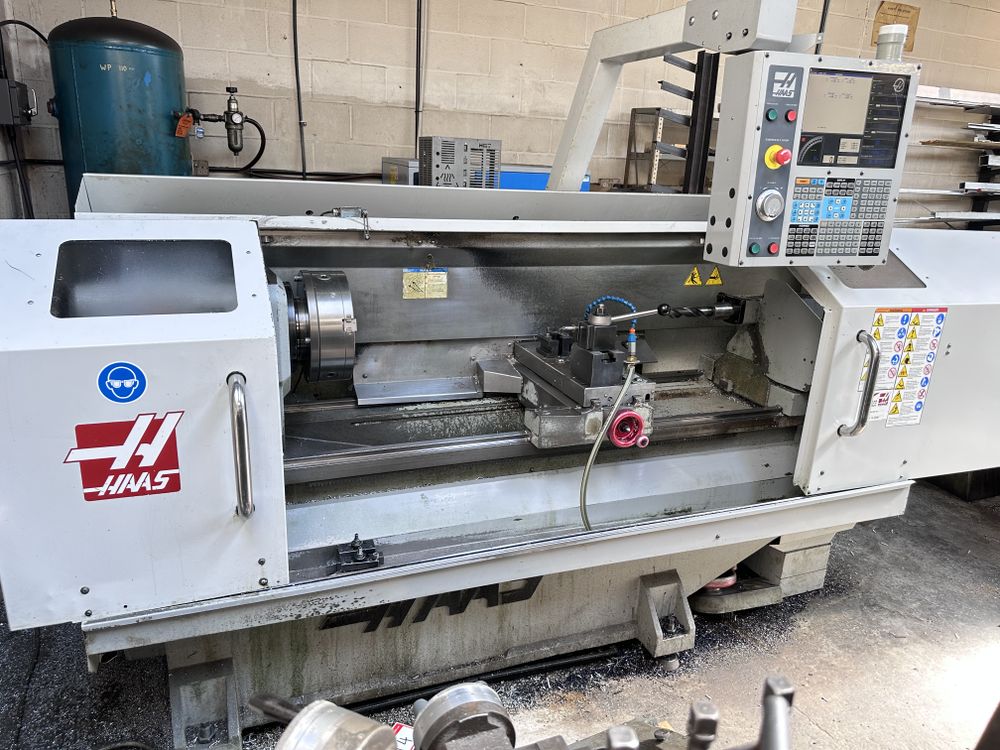

HAAS TL-2
Year: 2007

Control HAAS
Chuck size 250 mm
Distance between centres 1219 mm
Maximum cutting diameter 405 mm
Maximum cutting length 1219 mm
Spindle speed 1800 rpm
Spindle motor power 7.5 kW
Spindle bore 76.2 mm
Spindle nose A2-6
Rapid feedrates 11.4 mm/min
Swing 508 mm
Swing over cross-slide 279 mm
X axis travel 203 mm
Z axis travel 1219 mm
Turret positions 4 station
Machine dimensions 2642 x 1422 mm
Machine weight 2440 kg

3 jaw chuck
Coolant
Interlocked guards
Low voltage light
Quick change toolpost
Tailstock
USB port
