Haas HAAS 2000 rpm TL-1 2 Axis

Ref : 2726941-3-GO

Condition : Used

Manufacturer : Haas

Controller : HAAS

Spindle Speed : 2000 rpm

Model : TL-1

Nb Of Axis : 2 Axis

Year(s) : 2005

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

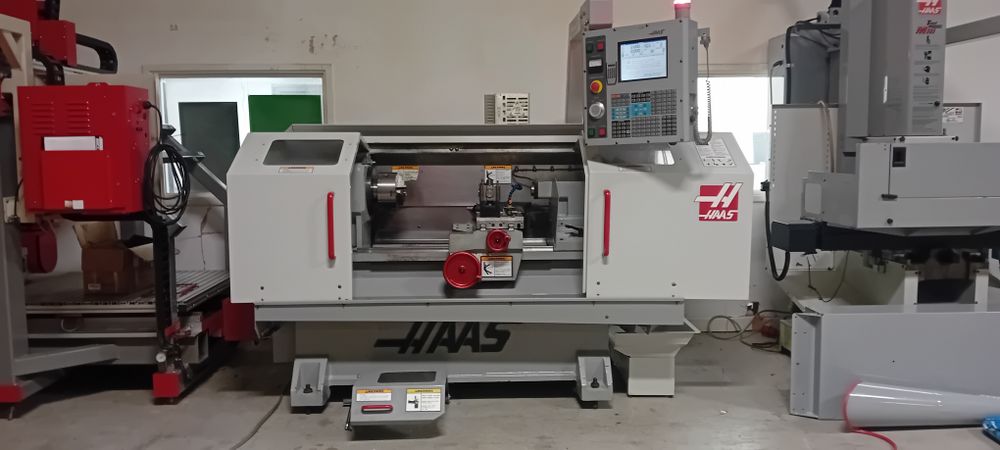

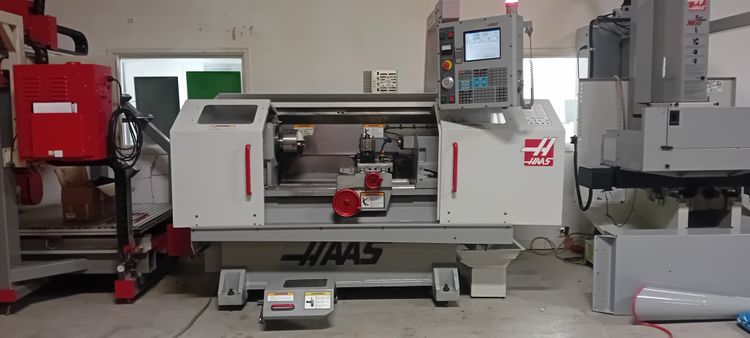

HAAS TL-1
2005

Bar capacity 59 mm
Chuck size 200 mm
Control HAAS
Distance between centres 762 mm
Machine dimensions 2108 x 1382 x 1899 mm
Machine weight 2223 kg
Maximum cutting diameter 406 mm
Maximum cutting length 762 mm
Rapid feedrates 11.4 m/min
Spindle motor power 5.6 kW
Spindle nose A2-5
Spindle speed 2000 rpm
Swing 508 mm
Swing over the cross-slide 240 mm
X axis travel 203 mm
Z axis travel 762 mm
3 jaw chuck
Coolant system
Interlocked guards
Low volt light
Manuals included
Quick change toolpost
Tailstock
