Haas HAAS 3400 rpm ST-30 2 Axis
Ref :
2725936-3-GO
Condition :
Used
Manufacturer :
Haas
Controller :
HAAS
Spindle Speed :
3400 rpm
Model :
ST-30
Nb Of Axis :
2 Axis
Year(s) :
2013
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

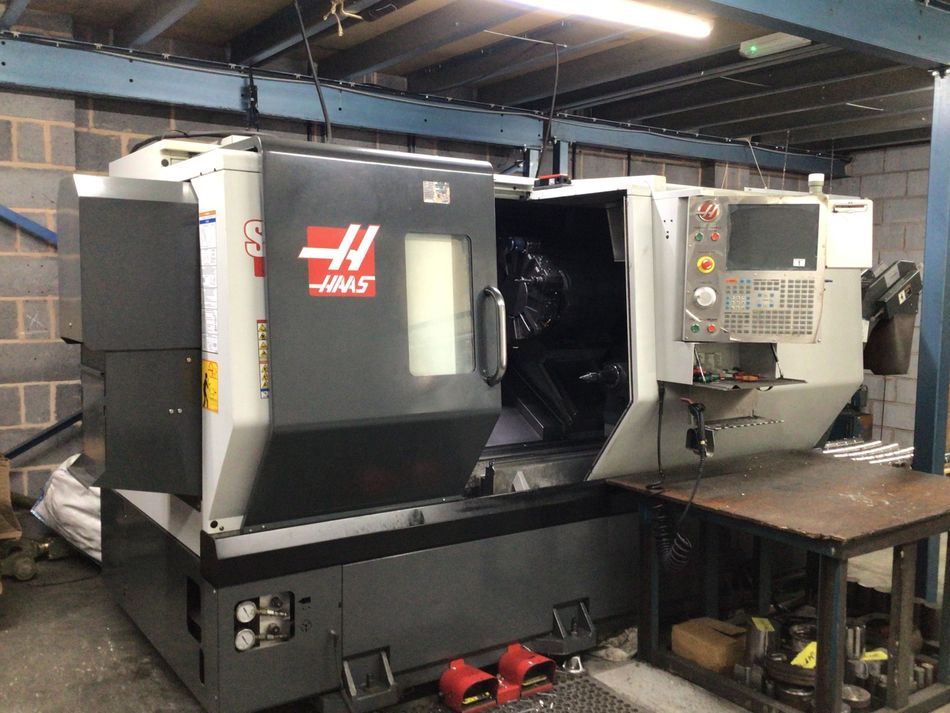

HAAS ST-30
2013
Bar capacity 76 mm
Chuck size 254 mm
Control HAAS
Distance between centres 762 mm
Machine dimensions 3450 x 1950 x 1940 mm
Machine weight 7200 kg
Maximum cutting diameter 533 mm
Maximum cutting length 660 mm
Rapid feedrates 24 m/min
Spindle motor power 30 Hp
Spindle nose A2-6
Spindle speed 3400 rpm
Swing 806 mm
Swing over carriage 527 mm
Tailstock taper MT #4
Turret positions 12
X axis travel 318 mm
Z axis travel 660 mm
3 jaw chuck
Coolant system
Interlocked guards
Low voltage light
Manuals
Swarf conveyor
Tailstock
Tool setter
USB port
