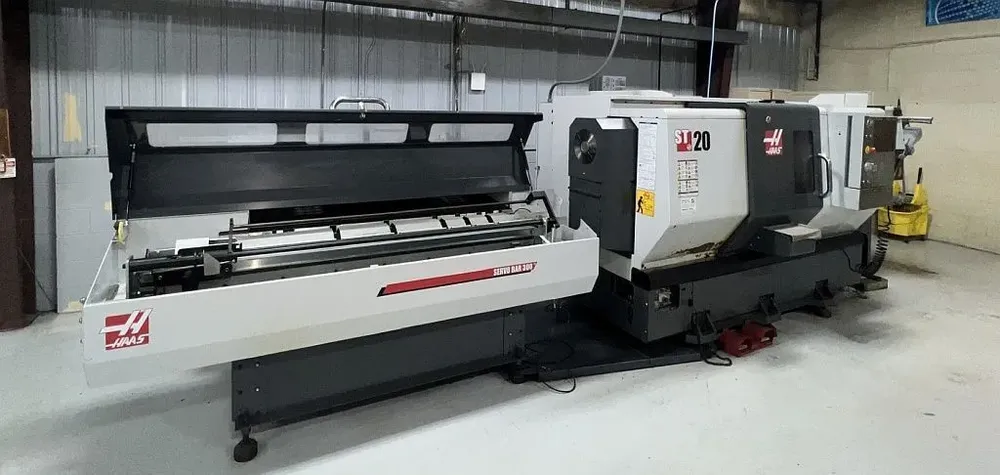

Haas Haas CNC 4,000 rpm ST-20 CNC Horizontal Lathe 2 Axis

Swing: 31.75"
Machining length: 20.5"
Chuck size: 8.3" 3-jaw
Turning diameter: 15"
Bar capacity: 2"
Spindle speed: 4,000 rpm
Spindle power: 20 HP
Turret: 12-station
Tailstock: Yes

Control: Haas CNC
Voltage: 195/260V, 3-phase
Machine type: Slant bed

Equipped with:
Haas Servo Bar 300 (BAR48A / BAR2008ST)
Tailstock (PTS-1 programmable tailstock)
LCC2 belt-type chip conveyor
ATP
PC1 parts catcher system
8.3" chuck

Machine dimensions (ST-20): 127" x 77" x 78"
Machine weight (ST-20): 9,000 lbs

Bar feeder dimensions: 104" x 60" x 48"
Bar feeder weight: 1,500 lbs

Total weight: 10,500 lbs
