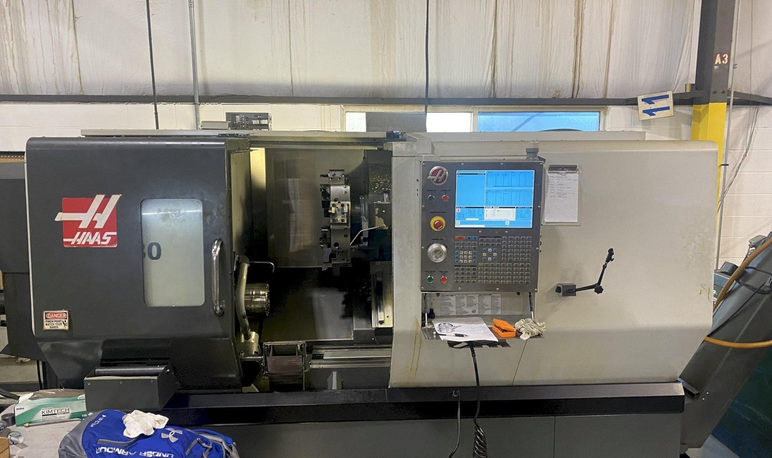

Haas Haas CNC 4000 rpm DS-30 4 Axis

X-Axis Travel: 12.52 in
Z-Axis Travel: 25.98 in
B-Axis Travel (Sub Spindle): 25.98 in
C-Axis Indexing: 0.001°
Control: Haas CNC
Rigid Tapping
Bar Capacity: 3 in
Swing: 31.75 in
Maximum Turning Diameter: 18 in
Distance Between Centers: 25.98 in
Spindle Speed: 4000 rpm
Main Spindle Motor: 30 hp
Spindle Nose: A2-6
Sub Spindle: Yes
Sub Spindle Chuck: 8 in
Sub Spindle Nose: A2-5
Sub Spindle Speed: 4000 rpm
Sub Spindle Motor: 25 hp
Live Tooling
Live Tooling Speed: 6000 rpm
Live Tooling Motor: 5 hp
Chuck Size: 8 in
Turret Capacity: 12 Stations
IEMCA Master 880 MP Bar Feeder
Parts Catcher
Collet Chuck on Main Spindle
Chip Conveyor
Coolant Tank and Pump
Machine Dimensions: 130 × 90 × 83 in
Machine Weight: 15000 lb
