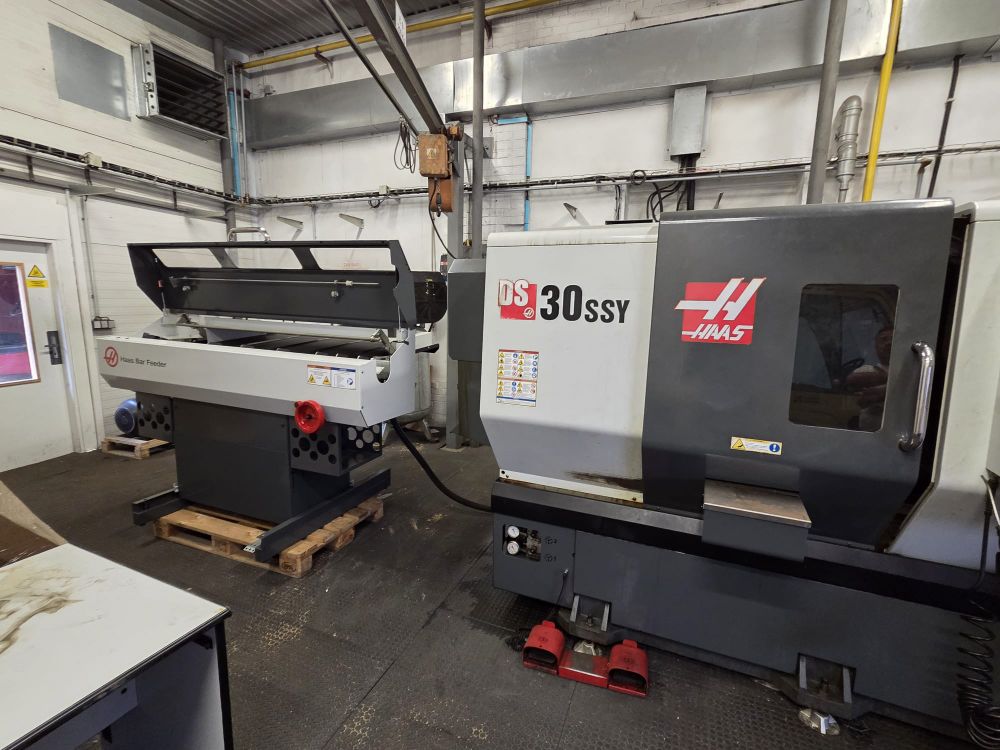

Haas Haas CNC 4800 RPM DS-30SSY 2 Axis

Cutting length: 584.2 mm
X-axis travel: 317.5 mm
Y-axis travel: ±50.6 mm
Z-axis travel: 584.0 mm
C-axis
Control: Haas CNC
Automatic tool presetter
Automatic tool probe
Automatic tool compensation
Parts catcher
Automatic chip conveyor
Automatic bar feeder
Spindle speed: 4800 RPM
Main spindle power: 22 kW
Main spindle nose: A2-6
Main spindle torque: 370 Nm
Main spindle bar capacity: 76 mm
Main spindle bore: 88.9 mm
Main spindle chuck: 250 mm 3-jaw
Sub spindle
Sub spindle nose: A2-5
Sub spindle power: 14.9 kW
Sub spindle torque: 149 Nm
Sub spindle speed: 4800 RPM
Turning diameter: 406.4 mm
Swing over bed: 807.7 mm
Turret: 24 stations
Tool interface: 12 × VDI40
Tool interface: 12 × BOT
Live tooling
Axial driven tool holder: ER32
Radial driven tool holder: ER32
Bar feeder maximum bar diameter: 79 mm
Maximum bar length: 1520 mm
Bar magazine capacity: 750 mm
Automatic bar length measurement
Machine weight: 7259.5 kg
Operating hours: 3302 h
Rotary tool holders
Additional tool holders
Chuck jaws
