Haas Haas CNC control 1000 rpm ST-55 2 Axis

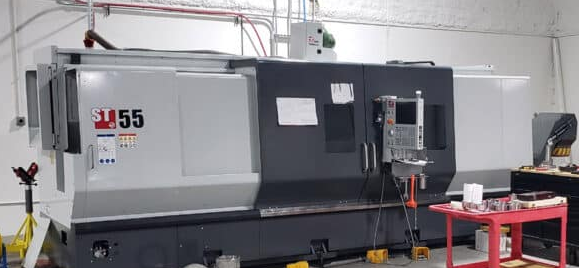

HAAS ST-55
2023

Swing diameter over front apron 876 mm
Swing diameter over cross slide 648 mm
Swing diameter over tailstock 648 mm
Maximum cutting diameter 648 mm
Maximum cutting length 2032 mm
Spindle nose A1-20 front and rear
Spindle power 55 hp (41 kW)
Spindle speed 1000 rpm
Spindle torque 5762 Nm at 30 rpm
Spindle bore diameter 318 mm
Haas CNC control
High-pressure coolant system
Belt-type chip conveyor
Wireless intuitive probing system for lathe
Rear chuck
Tailstock
Air chuck
Automatic self-centering steady rest LNS1 K3-Z
Steady rest capacity 2.56″ to 9.25″
Steady rest with central lubrication
Steady rest with side-mounted hydraulic cylinder
Steady rest with coolant wash at rollers
