Haas Haas CNC control 3400 rpm ST-30Y 2 Axis

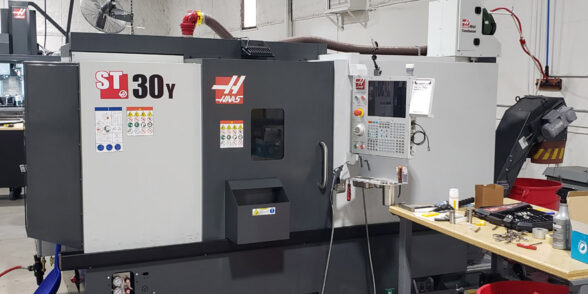

HAAS ST-30Y
2023

Maximum part swing 521 mm
Maximum cutting diameter 304 mm
Maximum cutting length 826 mm
Bar capacity 76 mm
Distance between centers 826 mm
X-axis travel 239 mm
Y-axis travel ±51 mm
Z-axis travel 826 mm
Rapid feed X and Y 12.0 m/min
Rapid feed Z 24.0 m/min
Spindle nose A2-6
Spindle power 30 hp (22.4 kW)
Spindle speed 3400 rpm
Spindle torque 407 Nm at 500 rpm
Spindle torque with optional gearbox 1356 Nm at 150 rpm
Spindle bore diameter 88.9 mm
Number of turret stations 12
Tooling type BMT65
Live tooling speed 4000 rpm
Boring bar rear clearance 102 mm
Machine height 2108 mm
Machine width 4521 mm
Machine depth 3048 mm
Coolant capacity 208 liters
Air requirement 113 L/min at 6.9 bar
Power requirement 28 kVA
Voltage 195–260 VAC, 3-phase, 50–60 Hz
Haas CNC control
1 GB program memory
Power-failure detection module
Safe Run crash protection system
Ethernet connection
HaasConnect mobile monitoring
Media display
WiFi connectivity
HaasDrop wireless file transfer
High-pressure coolant system
LT-BMT65-24 live tooling with C-axis
Automatic tool presetter
Belt-type chip conveyor
Coolant maintenance package
Automatic jet air blast
Parts catcher system
Programmable hydraulic tailstock
Wireless intuitive probing system for lathe
