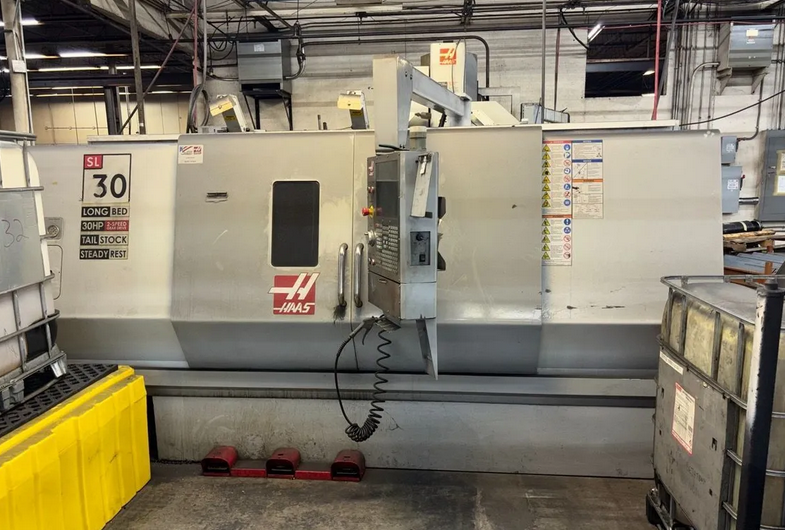

Haas Haas CNC Control 3,400 RPM SL-30TL 2 Axis

X Travel: 11.3"
Z Travel: 60"
Rapids on X: 710 IPM
Rapids on Z: 710 IPM
Haas CNC Control
Programmable Tailstock
Automatic Lubrication System
Tool Load Monitoring
Flood Coolant System
USB Port
Embedded Coolant Collection Tray
Direct-Coupled Servo Motors
Rigid Tapping
Double Wall Safety Door
Heavy-Duty Sheetmetal Enclosure
High Intensity Lighting
Bar Capacity: 3"
Swing: 30"
Swing Diameter: 30"
Turning Diameter: 14.5"
Max Cutting Diameter: 17"
Machining Length: 39"
Maximum Cutting Length: 60"
Between Centers: 60"
Max Speed: 3,400 RPM
Spindle Power: 30 HP
Peak Horsepower: 30 HP
Spindle Nose: A2-6
Spindle Bore: 3.5"
Draw Tube Bore: 3.03"
Spindle Torque: 300 ft-lb @ 700 RPM
Chuck Size: 10"
12-Position Bolt-On Tool Turret
Number of Tools: 12
OD/ID Tool Configuration: Any Combination
OD Turning Tool Size: 1"
Machine Max Height: 84"
Machine Max Width: 181"
Machine Max Depth: 113"
Machine Weight: 20,000 lbs
Coolant Capacity: 50 U.S. Gallons
Power Required: 28 kVA
3 Axis
Tailstock
Steady Rest
Long Bed
Chip Conveyor
